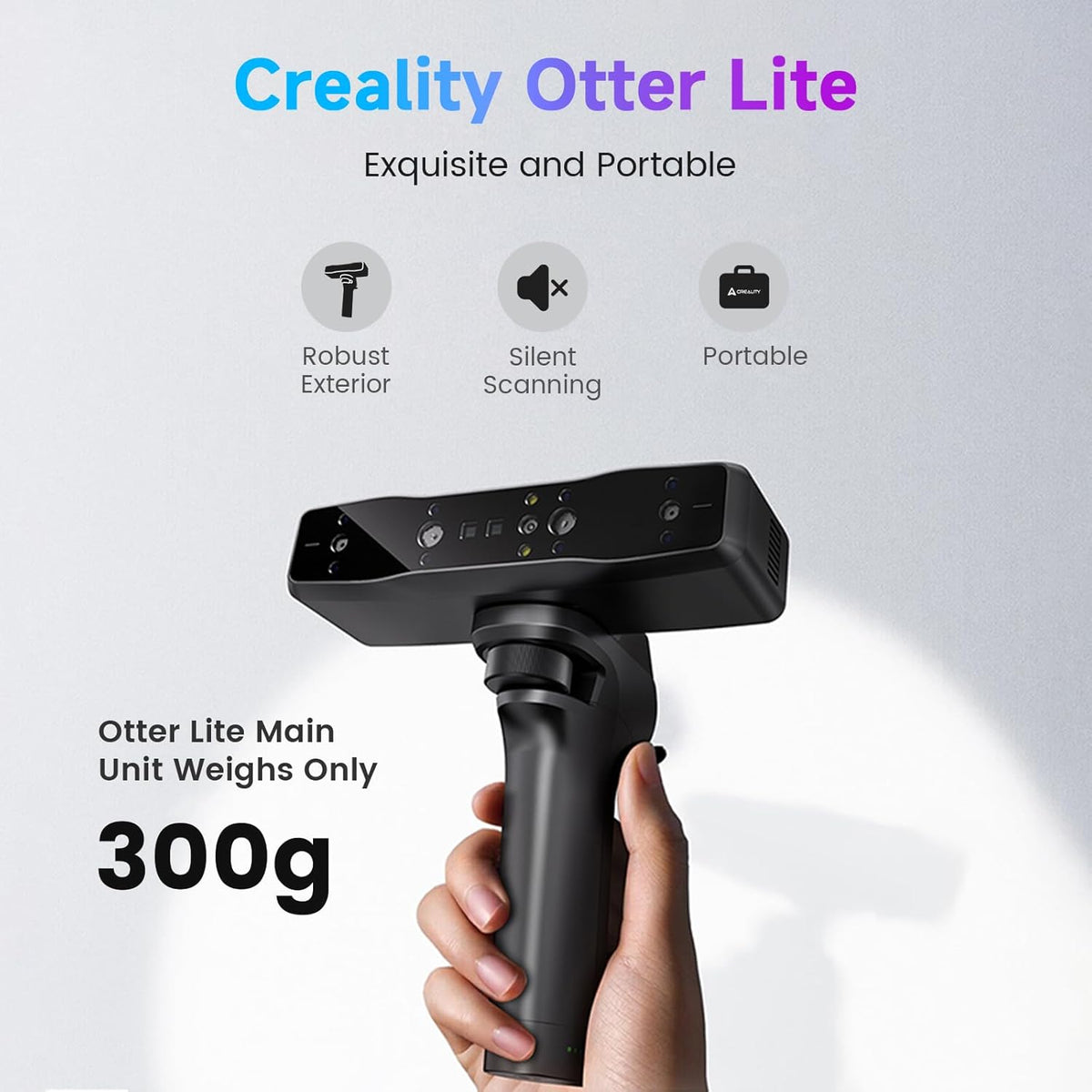

Creality Otter Lite Wireless 3D Scanner
RTK & Surveying
Capture parts, equipment surfaces and other objects with a portable structured-light scanner. Otter Lite combines four lenses with a wireless workflow for digitizing objects at the workbench or on location.
$759.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Why it fits your work

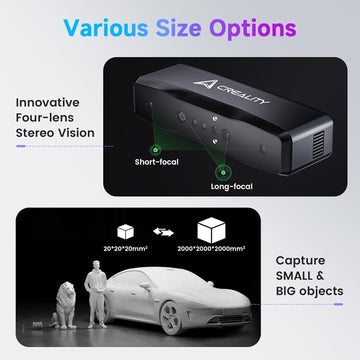

- Four-lens NIR structured-light scanning
- Wi-Fi 6 connection through the Lite Bridge
- Color model export in OBJ, STL and PLY formats
What’s included
Included items and compatible accessories.
- Otter Lite scanner and Lite Bridge.
- USB 3.0 data cable, USB 2.0 power cable and 2 USB-C adapters.
- High-precision calibration board, reflective markers, turntable and test object.
- Magnetic phone holder, screw, lanyard, cleaning cloth, portable case and documentation.
Compatibility and setup
The wireless workflow uses the included Lite Bridge and a supported phone or computer. Manufacturer accuracy was evaluated using a 3.94 in (100 mm) sphere pair in laboratory conditions; temperature, vibration and other operating conditions affect results. Phone, computer and scanned objects shown in photos are not included.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | 4008050059 |
|---|---|
| Scanner net weight | 0.66 lb (300 g) |
| Scanner dimensions | 6.81 × 1.54 × 2.20 in (173 × 39 × 56 mm) |
| Scanning technology | NIR binocular structured light |
| Lite Bridge weight | 0.67 lb (306 g); separate from scanner mass |
| Working distance | 4.72 to 47.24 in (120 to 1,200 mm) |
| Maximum scan rate | Up to 30 fps |
| Manufacturer stated accuracy | Up to 0.0020 in (0.05 mm), tested on a 3.94 in (100 mm) sphere pair under laboratory conditions |
