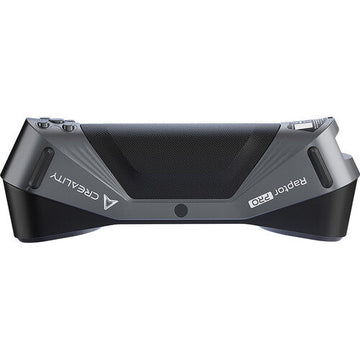

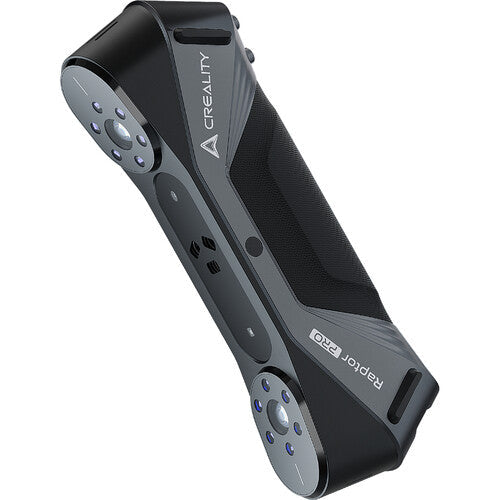

Creality Raptor Pro 3D Scanner
RTK & Surveying

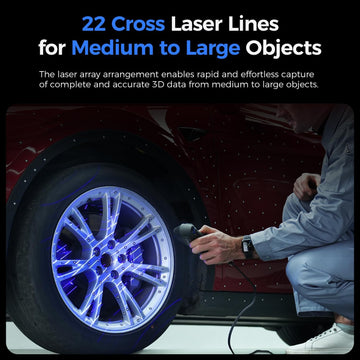

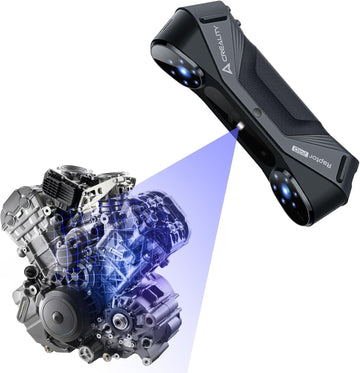

Capture automotive parts, mechanical components and larger surfaces for engineering workflows. Raptor Pro offers 22 crossed blue laser lines, seven parallel lines and NIR scanning for different object sizes and detail requirements.
$1,519.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Why it fits your work
- Choose crossed, parallel or NIR scanning for the task
- Export captured geometry to a compatible design or inspection workflow

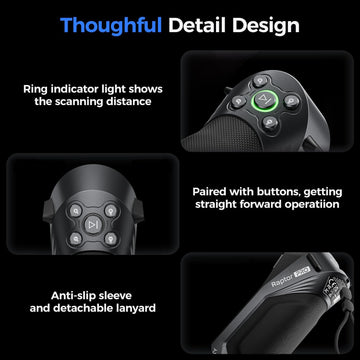

- Handheld controls and a distance indicator support on-site capture
What’s included
Included items and compatible accessories.
- Raptor Pro scanner.
- USB 3.0 data cable, power adapter and USB-C adapter.
- High-precision glass calibration plate and reflective markers.
- Lanyard, cleaning cloth, protective box and documentation.
Compatibility and setup
Requires supported CrealityScan software and a compatible Windows or macOS computer. Wireless use requires separate scanning accessories. Accuracy is evaluated under laboratory conditions and varies with temperature, vibration and the scanning setup. Compatibility with third-party CAD or inspection software does not include those licenses.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | 4008050057 |
|---|---|
| Scanner net weight | 0.89 lb (403 g) |
| Scanner dimensions | 8.46 × 1.97 × 2.91 in (215 × 50 × 74 mm) |
| Laser modes | 22 crossed and seven parallel blue lines |
| Additional scanning mode | NIR structured light |
| Maximum scan rate | Up to 60 fps laser; up to 30 fps NIR |
| Connection | USB-C / USB 3.0 |
| Operating temperature | 14 to 104 °F (-10 to 40 °C) |
