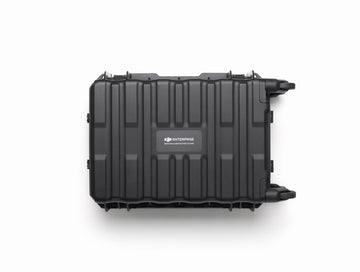

DJI BS100 Intelligent Battery Station
Batteries & Charging

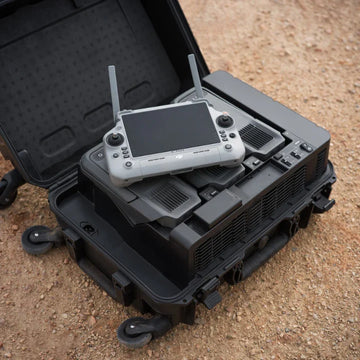

Keep Matrice 400 flight and controller batteries organized in a wheeled charging station. BS100 provides three TB100 ports, two WB37 ports and USB-C charging.
$1,925.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 3 TB100 ports
- Flight-battery capacity
- 2 WB37 ports
- Controller-battery capacity
- Wheeled case
- Charging, storage and transport
Overview
Charge one TB100 and one WB37 simultaneously while choosing the appropriate standard, ready-to-fly, fast or quiet operating mode. Input voltage affects flight-battery charging speed, so plan the field power supply around the actual site.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- BS100 Intelligent Battery Station × 1
TB100, TB100C and WB37 batteries, controller and aircraft are sold separately. Product-use photos may show these optional items.
Compatibility and setup
Designed for the Matrice 400 battery workflow. Keep the station open while charging and follow the manufacturer’s power and ventilation requirements.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000683.01 |
|---|---|
| Empty station weight | 26.01 lb (11.8 kg) |
| Station dimensions | 23.82 × 16.14 × 9.84 in (605 × 410 × 250 mm) |
| Input | 100–240 VAC, 50–60 Hz, 10 A |
| Supported batteries | TB100, TB100C and WB37 |
| USB-C output | Up to 65 W |
| Operating temperature | -4 to 104°F (-20 to 40°C) |
DJI reports approximately 70 minutes for a 0–100% TB100 charge at 110 V in Fast Charging Mode at 77°F (25°C); 220 V operation can be faster. Actual charging varies with conditions.
