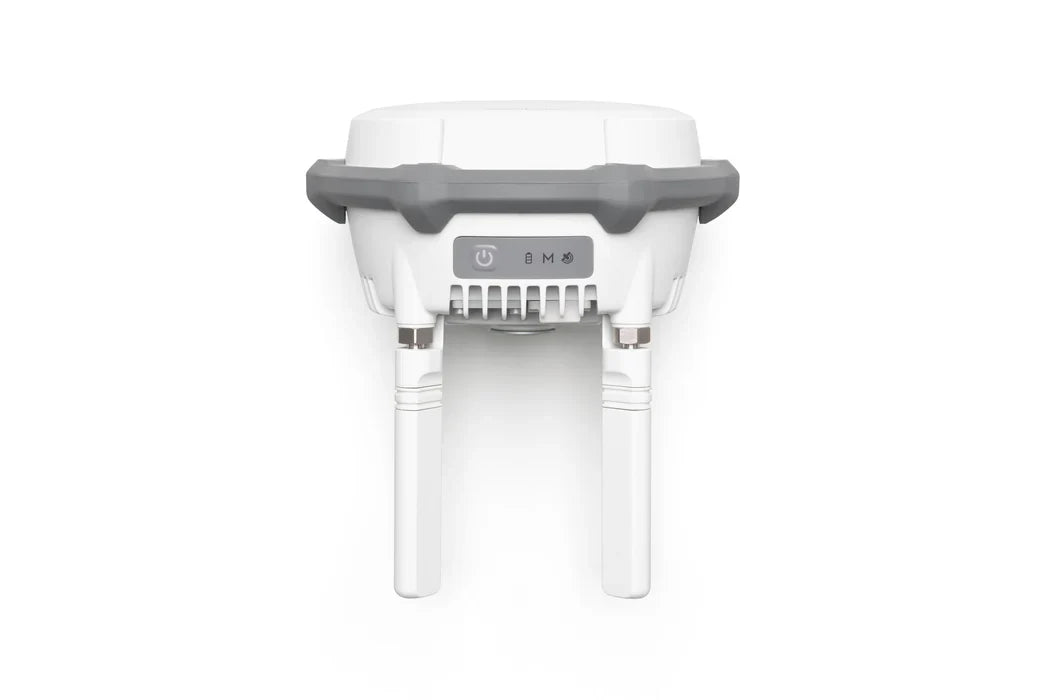

DJI D-RTK 3 Multifunctional Station
RTK multifunctional station
Add a positioning reference to compatible DJI aircraft, collect ground points or extend supported aircraft links. D-RTK 3 combines base, rover and relay functions in one portable station.
$2,365.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 3 modes
- Base, rover and supported relay
- 2.78 lb (1.26 kg)
- Station weight
- 7 hr
- Rated base-mode battery time
- IP67
- Station protection rating
Manufacturer-rated performance. Accuracy, battery life and radio performance depend on setup and site conditions.
Overview
Use base mode to supply RTK corrections to compatible DJI aircraft. Switch to rover mode with a supported mobile device for ground-control and check-point work, or use relay mode with specifically supported aircraft and controllers. Match the station mode to the job and keep all connected equipment on compatible firmware.
Support the flight
Base mode provides a local RTK reference for supported DJI equipment. Calibrate the station coordinates appropriately for the accuracy your project requires.
Measure ground points
Rover mode works with the DJI Enterprise app. Recorded observations and compatible survey data can be processed in DJI Terra.
Plan a stronger link
Relay mode supports specified Matrice aircraft and controllers. Place the station where it has clear communication paths; terrain and interference affect performance.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- D-RTK 3 Multifunctional Station × 1
- Spare OcuSync directional antennas × 4
- USB-A to USB-C cable × 1
Survey pole and tripod kit are sold separately. Rover use requires a compatible mobile device and the DJI Enterprise app. DJI recommends a USB PD 3.0 power adapter with 9–15 V output for charging.
Compatibility and setup
Base mode supports Matrice 400, Matrice 4E/4T, Matrice 4D/4TD with DJI RC Plus 2 Enterprise, and selected earlier DJI RTK platforms. Relay mode supports Matrice 400, Matrice 4E/4T and Matrice 4D/4TD with the required controller. Earlier platforms have mode and calibration limits. Rover use requires a DJI-supported mobile device and the DJI Enterprise app. This portable station is a different product from the D-RTK 3 Relay Fixed Deployment Version.

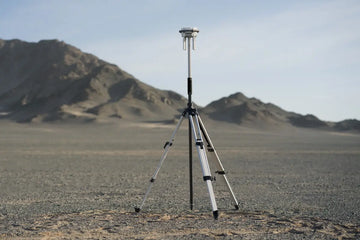

Application image shows the optional D-RTK 3 survey pole and tripod kit, sold separately.
Specifications
The details that matter when choosing your equipment.
| Model and part number | D-RTK 3 Multifunctional Station | CP.EN.00000551.01 |
|---|---|
| Role | Base, rover or relay, depending on supported equipment |
| GNSS | Multi-band, multi-constellation GNSS |
| Receiver weight | 2.78 lb (1,260 g) |
| Receiver dimensions | 6.42 in diameter × 3.50 in high (163 × 89 mm), without OcuSync directional antennas |
| Corrections and communications | DJI O4 Enterprise; Bluetooth for supported rover workflows |
| Rover fixed-survey RTK accuracy | Horizontal: 0.31 in + 1 ppm (8 mm + 1 ppm) RMS; vertical: 0.59 in + 1 ppm (15 mm + 1 ppm) RMS |
| Tilt survey | 0–60°; horizontal: 0.31 in + 0.028 in per degree (8 mm + 0.7 mm per degree) |
| Rated battery time | Base: 7 hours; rover: 10 hours; relay: 4 hours at normal temperature |
| Battery and charging | Installed 46.8 Wh LiPo; USB-C, USB PD 3.0 adapter with 9–15 V output recommended |
| Ingress protection | IP67, station only |
| Operating temperature | -4 to 131°F (-20 to 55°C) |
DJI’s stated accuracy assumes an open sky view, good satellite geometry, low ionospheric activity and no significant electromagnetic interference or multipath. Base-coordinate calibration and a fixed RTK solution matter. Battery runtime decreases in cold conditions. IP67 applies to the station under specified conditions; it is not permanent and requires correctly fitted port covers.
