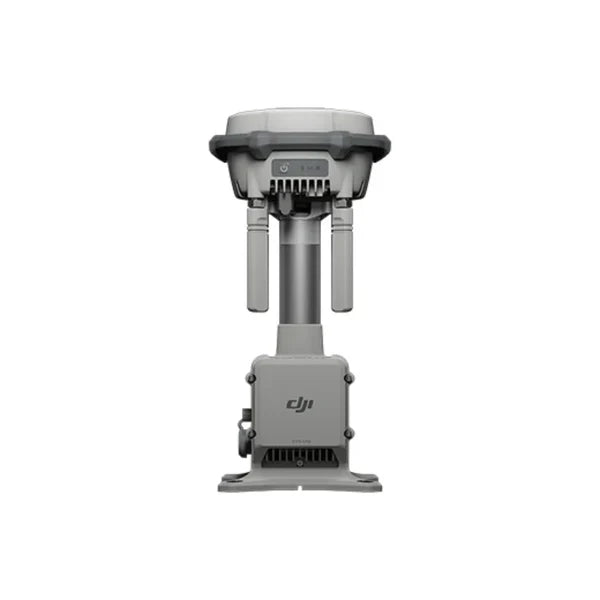

DJI D-RTK 3 Relay Fixed Deployment Version
RTK & Surveying
Install a fixed relay to extend communication coverage for supported DJI operations. The fixed-deployment model supports outdoor mounting and PoE power.
$3,333.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
What’s included
Included items and compatible accessories.
- D-RTK 3 Relay Fixed Deployment Version station
Compatibility and setup
Relay mode only. Current DJI documentation supports Dock 3, Matrice 400, Matrice 4D/4TD with RC Plus 2 Enterprise, and specified Matrice 4E/4T firmware. A site survey and correct installation are required. Power it through DJI Dock 3 or a compatible PoE supply. Outdoor Ethernet cable must be Cat 6 or above, no longer than 328 ft (100 m), with the specified weatherproof connector. The IP67 installation rating requires the dedicated PoE port connector and suitable cable; the rubber-sealed PoE input alone is IPX5. This is not the portable base/rover version.
Specifications
The details that matter when choosing your equipment.
| Station weight | Approx. 4.94 lb (2.24 kg) |
|---|---|
| Station dimensions | 6.42 × 13.54 in (163 × 344 mm) |
| Battery | 46.8 Wh LiPo |
| Power | Compatible PoE supply; see installation requirements |
| Supplier SKU | CP.EN.00000552.01 |
|---|
