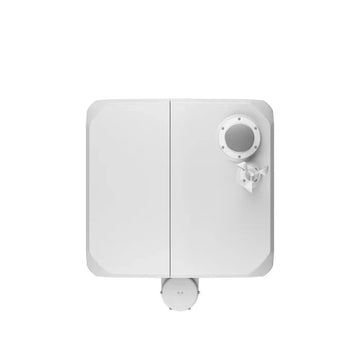

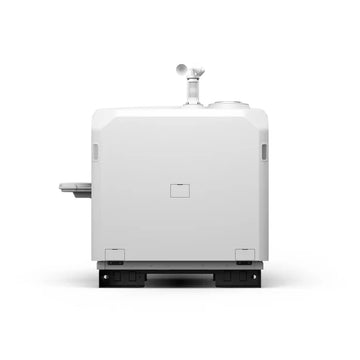

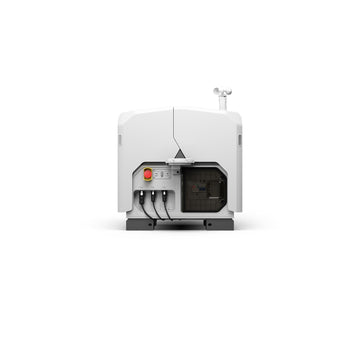

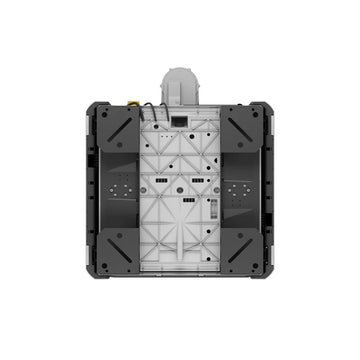

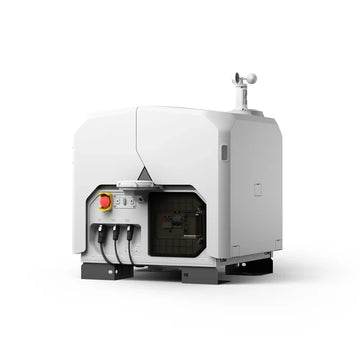

DJI Dock 3 for Matrice 4D and 4TD
Docking & Remote Operations
Build a remote inspection or public-safety workflow around a compatible Matrice 4D-series aircraft. DJI Dock 3 provides a protected landing, charging and communications station for one aircraft.
$15,890.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Matrice 4D / 4TD
- Compatible aircraft
- 1 aircraft
- Dock capacity
- Remote missions
- Supported cloud workflows
Overview

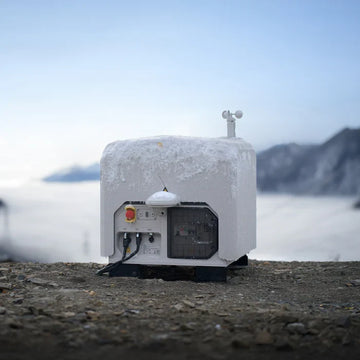

Use supported remote operations software to plan missions and manage the dock. Successful deployment requires an appropriate site, electrical supply, network connection and commissioning. The dock supports fixed installation and configured vehicle deployment.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- DJI Dock 3 station × 1
Aircraft, site works, installation, commissioning, communications service and software subscriptions are not implied included in this dock-only listing.
Compatibility and setup
Matrice 4D or Matrice 4TD with supported firmware. Requires suitable power, networking, positioning and a deployment plan. Use DJI FlightHub 2 or supported integration. Vehicle installations need the specified accessories and secure mounting; the vehicle must stay parked during aircraft operations.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000590.01 |
|---|---|
| Dock weight without aircraft | Approximately 121.25 lb (55 kg) |
| Dimensions, cover closed | 25.20 × 29.33 × 30.31 in (640 × 745 × 770 mm) |

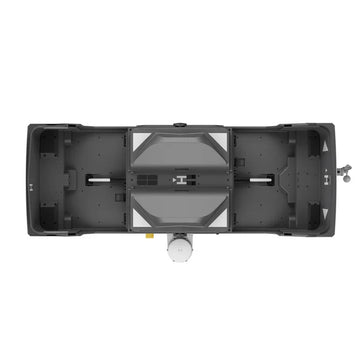

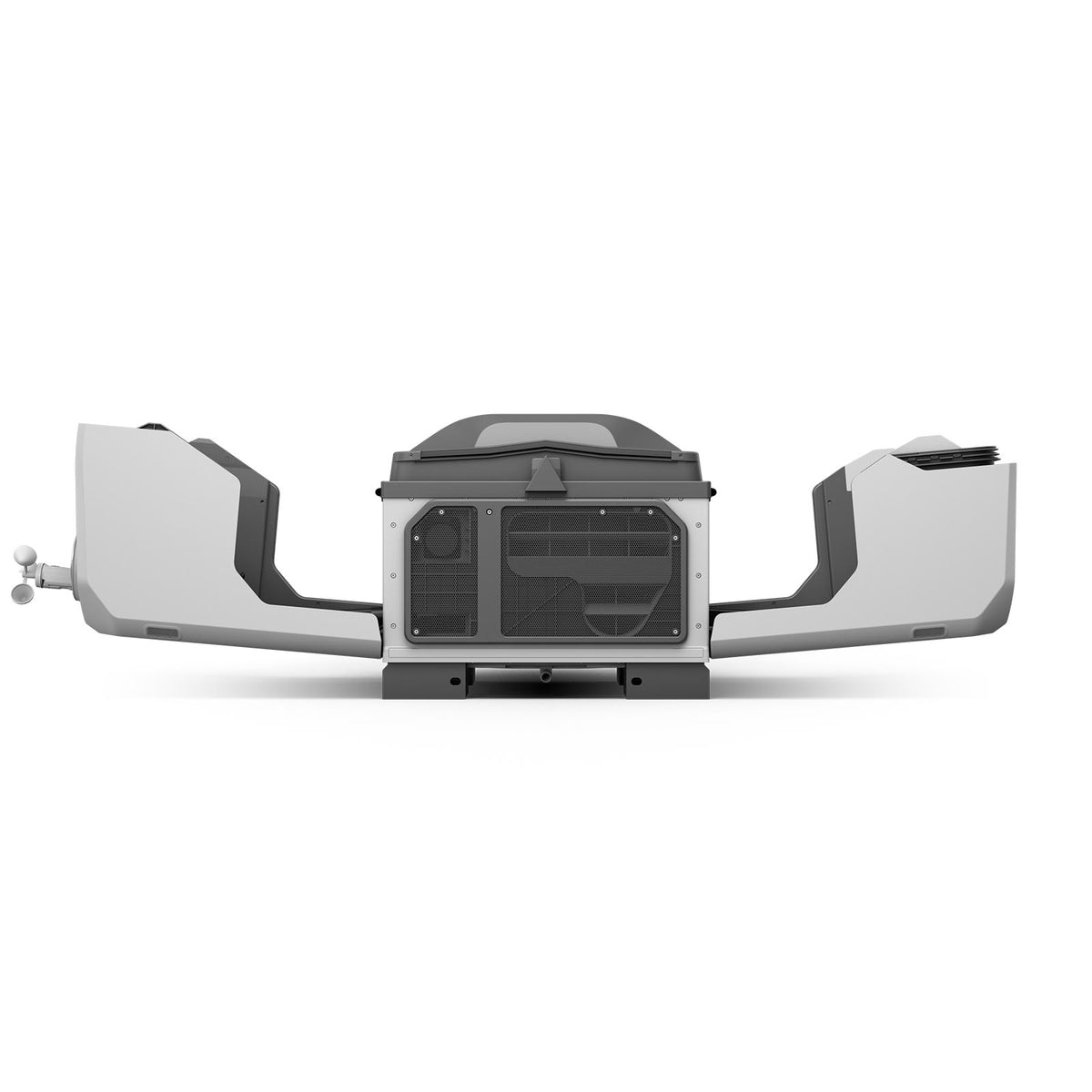

| Dimensions, cover open | 69.29 × 29.33 × 19.09 in (1760 × 745 × 485 mm) |
| AC input | 100–240 V, 50/60 Hz; maximum 800 W |
| Operating temperature | -22 to 122°F (-30 to 50°C); follow preheating requirements |
| Ingress protection | IP56 under specified installation conditions |
| Backup battery | 12 V, 12 Ah lead-acid |
| Network | 10/100/1000 Mbps Ethernet; supported cellular hardware/service optional |
