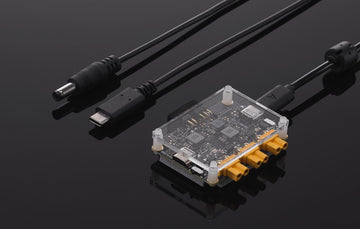

DJI E-Port Development Kit
Mission Accessories
Connect custom payload hardware to an aircraft E-Port for SDK development and debugging. This kit provides power, USB and serial interfaces on an adapter board.
$81.40
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Overview
- XT30 power outputs, USB 2.0 and UART/PPS signal connections.
Official resources

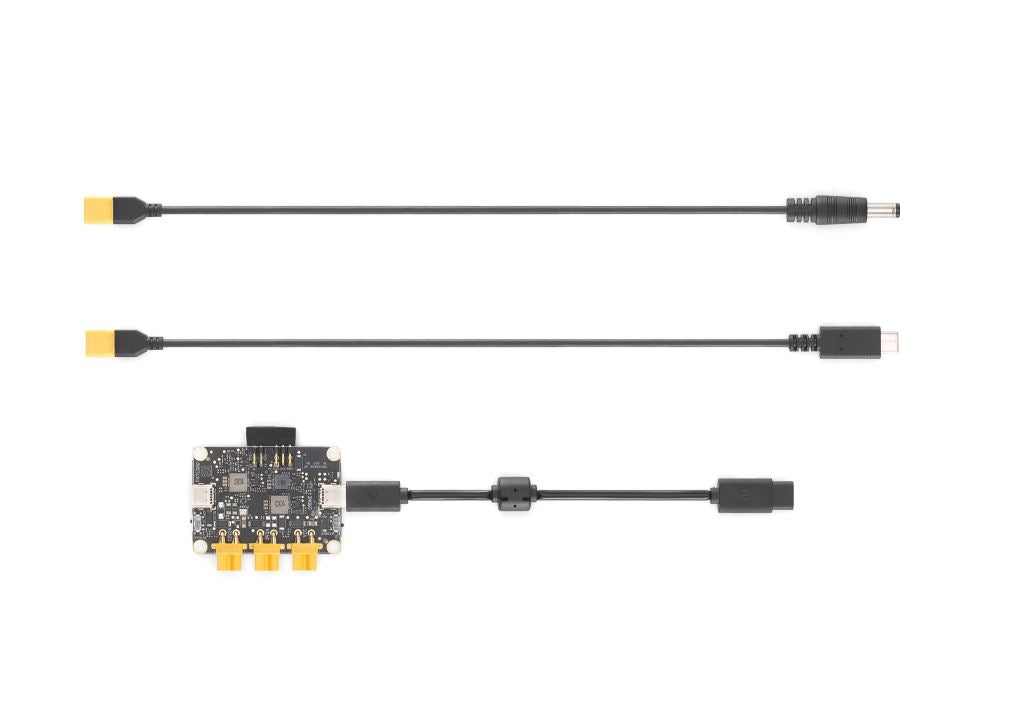

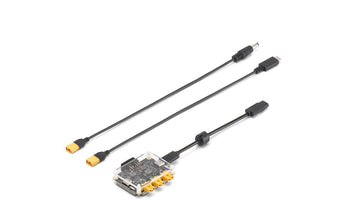

What’s included
Included items and compatible accessories.
- E-Port adapter board and pin-header protector
- 5.91 in (150 mm) E-Port coaxial cable
- 11.81 in (300 mm) XT30-to-USB-C power cable
- 11.81 in (300 mm) XT30-to-DC5.5 power cable
Compatibility and setup
DJI lists Matrice 4D/4TD, 4E/4T, 350 RTK, 300 RTK and 30/30T compatibility. Prevent contact between the board and airframe that could cause a short circuit. Integrated payloads need heat dissipation and metal shielding. Keep the combined XT30 output within the aircraft power limit.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000459.01 |
|---|---|
| Platform | Matrice 4D / 4 / 350 RTK / 300 RTK / 30 |
| Adapter board dimensions | 2.17 × 1.57 × 0.35 in (55 × 40 × 9 mm) |
