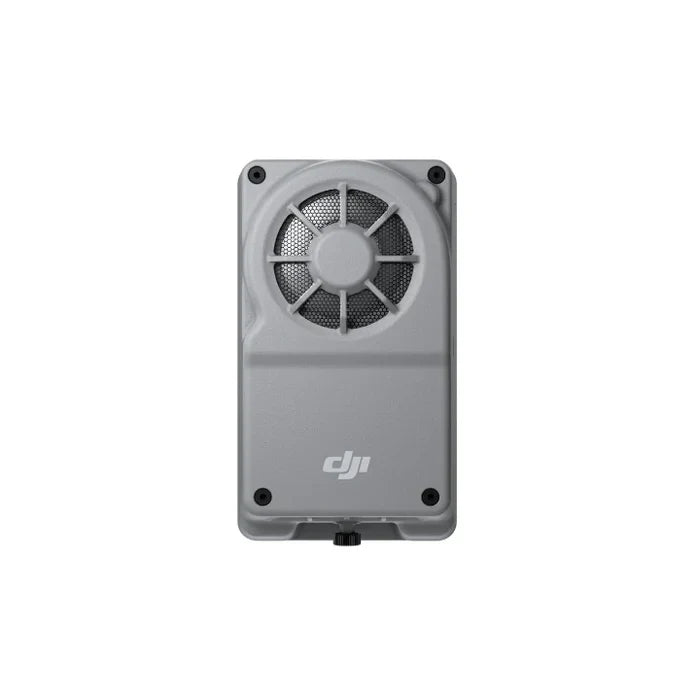

DJI Manifold 3 Onboard Computer
Mission Accessories
Run compatible onboard applications or develop an aircraft-connected computing workflow with Manifold 3. The compact unit supports DJI Payload SDK applications on selected Matrice platforms.
$2,167.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Up to 100 TOPS
- Sparse INT8 computing
- 16 GB
- LPDDR5 memory
- 256 GB
- SSD storage
Overview
Use a supported third-party application or build a custom workflow with the available SDK and computing tools. Manifold 3 supplies processing hardware; the task-specific application and integration determine what the system does.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Manifold 3 onboard computer × 1
Aircraft, installation accessories and application licenses are not implied included.
Compatibility and setup
Matrice 400, Matrice 4 Series and Matrice 4D Series. Mounting and interfaces differ by aircraft. On Matrice 400, use supported E-Port V2 E1/E2/E3 connections; DJI recommends E3. Use the correct aircraft-specific installation hardware and compatible application software.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000637.01 |
|---|---|
| Net computer weight | 4.23 ± 0.18 oz (120 ± 5 g) |
| Dimensions | 3.86 × 2.24 × 1.42 in (98 × 57 × 36 mm) |
| Rated power | 33 W |
| Memory | 16 GB LPDDR5 |
| Storage | 256 GB SSD |
| USB interface | USB-C, USB 3.2 Gen 1; no HDMI or DisplayPort output |
| Ingress protection | IP55; protection can diminish with wear |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
