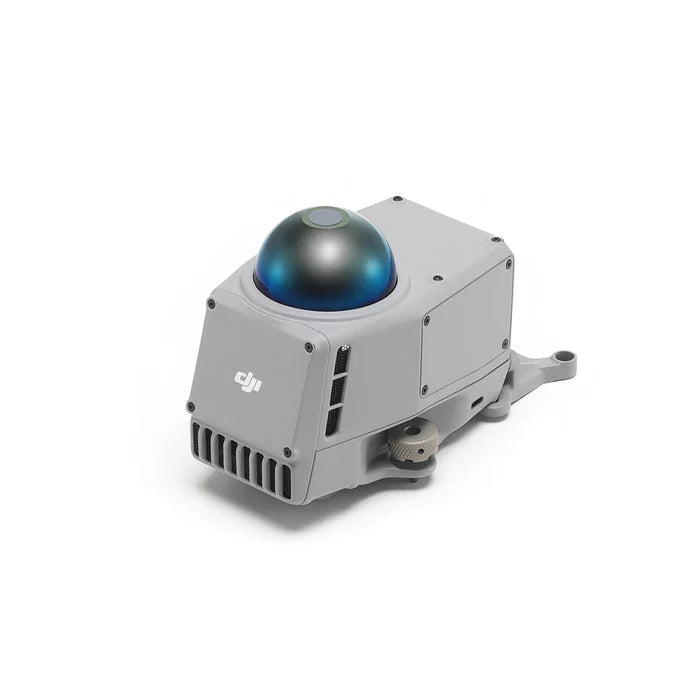

DJI Matrice 4 Obstacle Sensing Module
Mission Accessories
Add rotating LiDAR and millimeter-wave radar sensing to supported Matrice 4 aircraft. The LR-01 module supports low-light positioning and obstacle-sensing workflows around utility assets and complex structures.
$2,453.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Rotating LiDAR
- Distance sensing
- Millimeter-wave radar
- Additional sensing
- LR-01
- Module model
Overview
The sensing module combines several sensing directions to help identify suitable obstacles. It does not eliminate blind spots or collision risk. Performance depends on the target, weather, installation and aircraft firmware.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Matrice 4 Obstacle Sensing Module × 1
- H2.5 hex key × 1
- H1.5 hex key × 1
- Matrice 4 Series adapter bracket × 1
- Reflective stickers for DJI Dock × 12
Aircraft is sold separately.
Compatibility and setup
Matrice 4D Series, and Matrice 4 Series with the included adapter bracket and current firmware. It cannot actively avoid fast-moving objects. Wires under 0.47 in (12 mm), slanted wires, blind spots and poor weather can limit sensing. Install and activate according to DJI instructions.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000648.01 |
|---|---|
| Module weight | 8.29 oz (235 g) |
| Dimensions | 4.07 × 2.52 × 3.38 in (103.3 × 64 × 85.8 mm) |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
| Ingress protection | IP55 with Matrice 4D Series; not a new water-resistance rating for Matrice 4E/4T |
