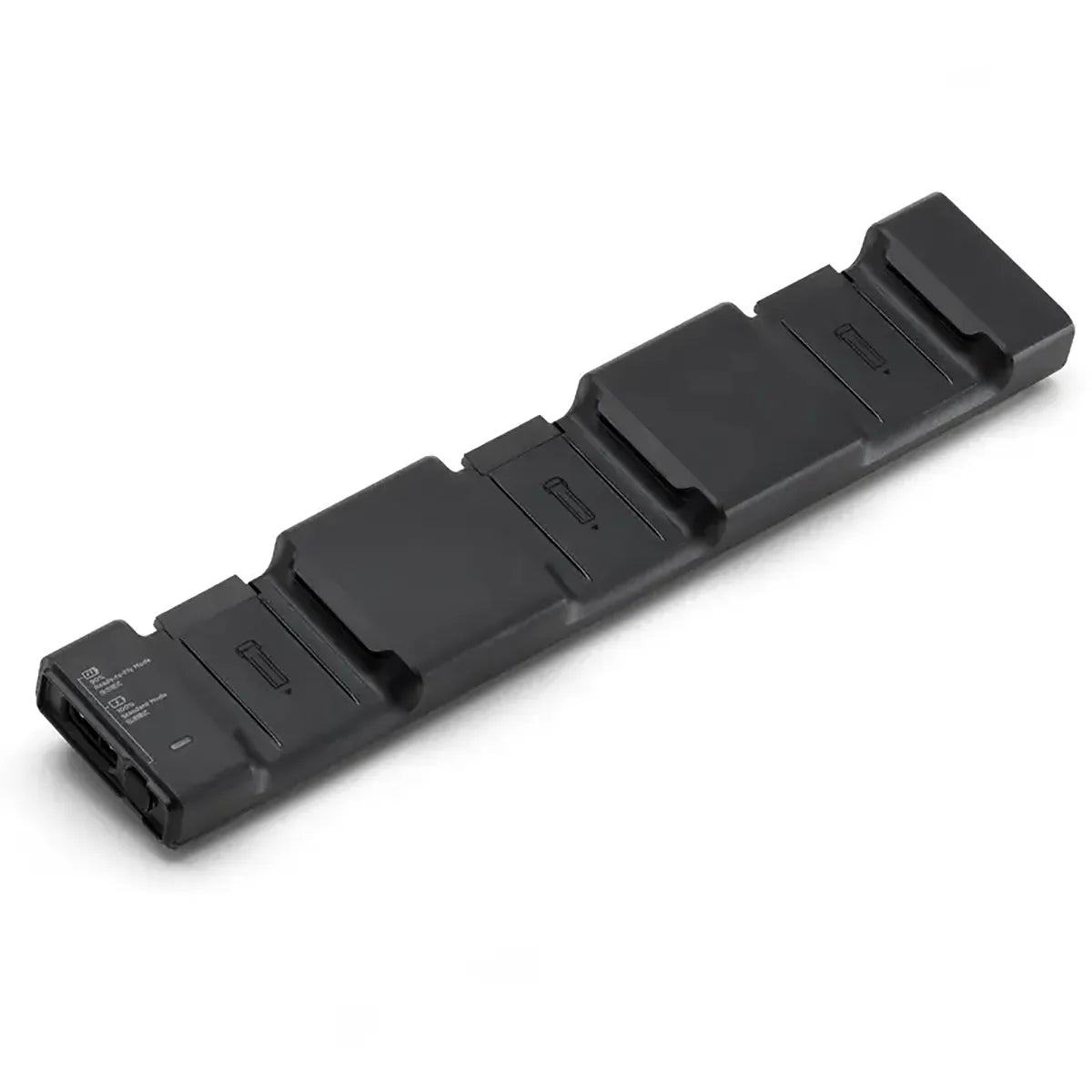

DJI Matrice 4 Series Charging Hub (200W)
Batteries & Charging
Charge a rotation of Matrice 4E or 4T batteries with the 200W hub. It accepts three compatible batteries and charges them sequentially, starting with the highest charge level.
$141.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 200 W
- Hub rating
- 3 batteries
- Connected capacity
- Sequential
- High-to-low battery-level order
Overview
Standard Mode charges each battery to 100%. Ready-to-Fly Mode charges to 90% and maintains that level. Pair the hub with the supported DJI 240W power adapter or DJI Power setup for the intended charging performance.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Charging hub × 1
- SDC fast-charge cable × 1
Power adapter, portable power station and batteries are sold separately.
Compatibility and setup
Matrice 4E and Matrice 4T batteries. Compatible DJI 240W power adapter model CDX230-240 is required for AC operation. Not compatible with Matrice 4D-series batteries. The USB-C port is for firmware updates and configuration, not battery charging; use the SDC charging connection.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000707.01 |
|---|---|
| Model | CHX345-200 |
| Compatible battery | BPX345-6741-14.76 |
| Input | 11.2–17 V, maximum 12.1 A |
| Charging modes | Standard: 100%; Ready-to-Fly: 90% |
| Operating temperature | 41 to 104°F (5 to 40°C) |
