DJI T100 150L Spreading System
Agricultural spreading system
Equip the Agras T100 for granular applications with a 39.6 US gal (150 L) tank, screw-feeder metering and a centrifugal spreading disc.
View larger

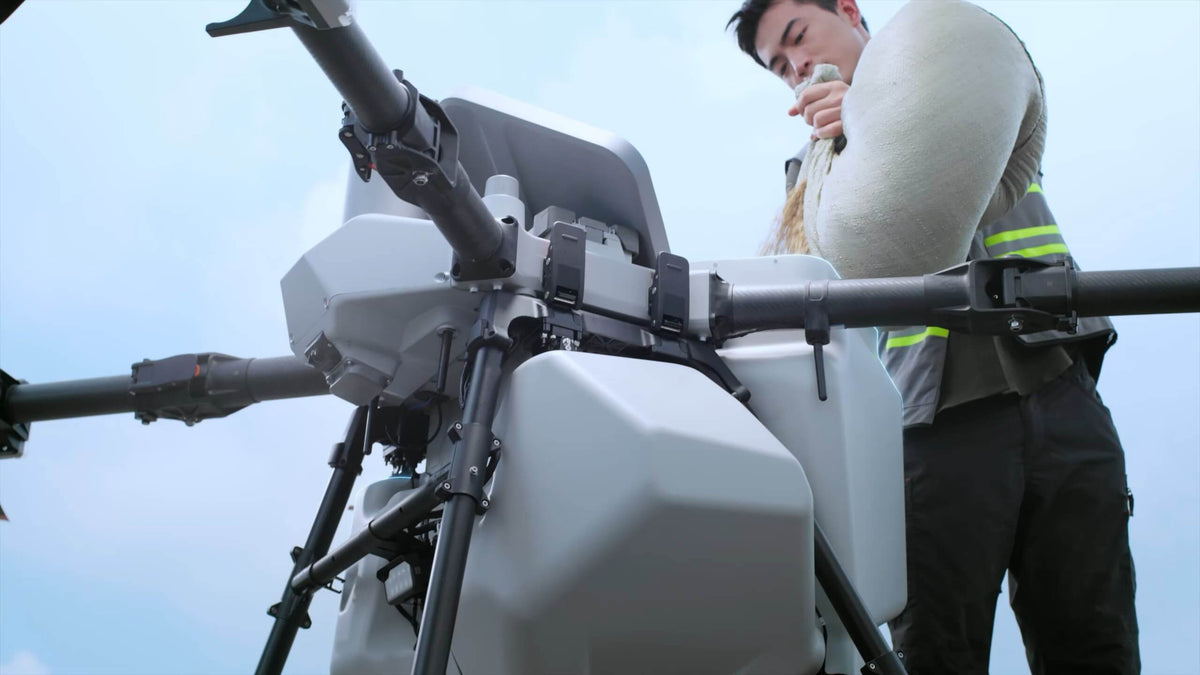

DJI T100 150L spreading tank being filled on an Agras T100; aircraft sold separately
Installation photos show the system mounted on an aircraft. Aircraft sold separately.
$3,459.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 39.6 US gal (150 L)
- Tank volume
- 220.5 lb (100 kg)
- Maximum material load*
- 9.8–32.8 ft (3–10 m)
- Effective spreading width*
- 0.02–0.39 in (0.5–10 mm)
- Dry material range*
*Payload and spreading performance depend on material properties, operating setup and conditions. Follow the aircraft’s recommended load and calibrate the system for the material.
Add granular spreading to your T100
The 39.6 US gal (150 L) system supports dry materials with particle sizes from 0.02 to 0.39 in (0.5–10 mm) when paired with the appropriate feeder. The tank’s maximum material load is 220.5 lb (100 kg), subject to the aircraft’s recommended payload.
Capacity for bulkier material
A 39.6 US gal (150 L) tank accommodates low-density materials such as grass seed while keeping loads within the recommended weight.
Choose the right feeder
The standard configuration includes extra-large and medium feeders. Select the feeder to match the material and application rate.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- 1 × DJI 150L Spreading System for T100
- Standard extra-large and medium feeders
Accessory system only; aircraft is not included. Large and small feeders are optional accessories.
Compatible equipment
DJI Agras T100 Ready to Fly Kit
Compatible aircraft. Aircraft sold separately.
DJI Agras T100 with firmware supporting the spreading system
Delivery, warranty & support
Contact GroDrones with questions about delivery options, warranty or returns.
Specifications
The details that matter when choosing your equipment.
| System | DJI Spreading System 4.0 for Agras T100 |
|---|---|
| Tank volume | 39.6 US gal (150 L) |
| Maximum material load | 220.5 lb (100 kg); follow the DJI Agras app payload recommendation |

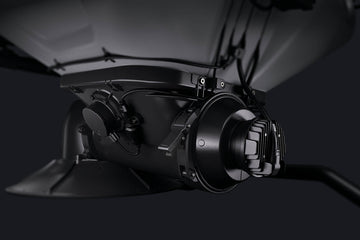

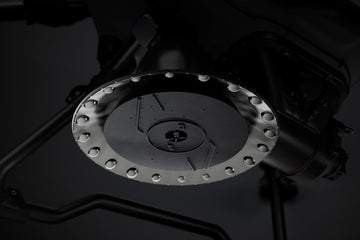

| Discharge mechanism | Screw feeder with centrifugal spreading disc |
| Maximum discharge rate | 881.8 lb/min (400 kg/min) with compound fertilizer; material and operating conditions affect results |
| Effective spreading width | 9.8–32.8 ft (3–10 m); varies with material, disc speed and flight altitude |
| Standard feeders | Extra-large: 0.02–0.39 in (0.5–10 mm) dry granules; medium: 0.16–0.24 in (4–6 mm) dry granules |
| Spreading system dimensions | 35.43 × 32.28 × 36.22 in (900 × 820 × 920 mm) |
