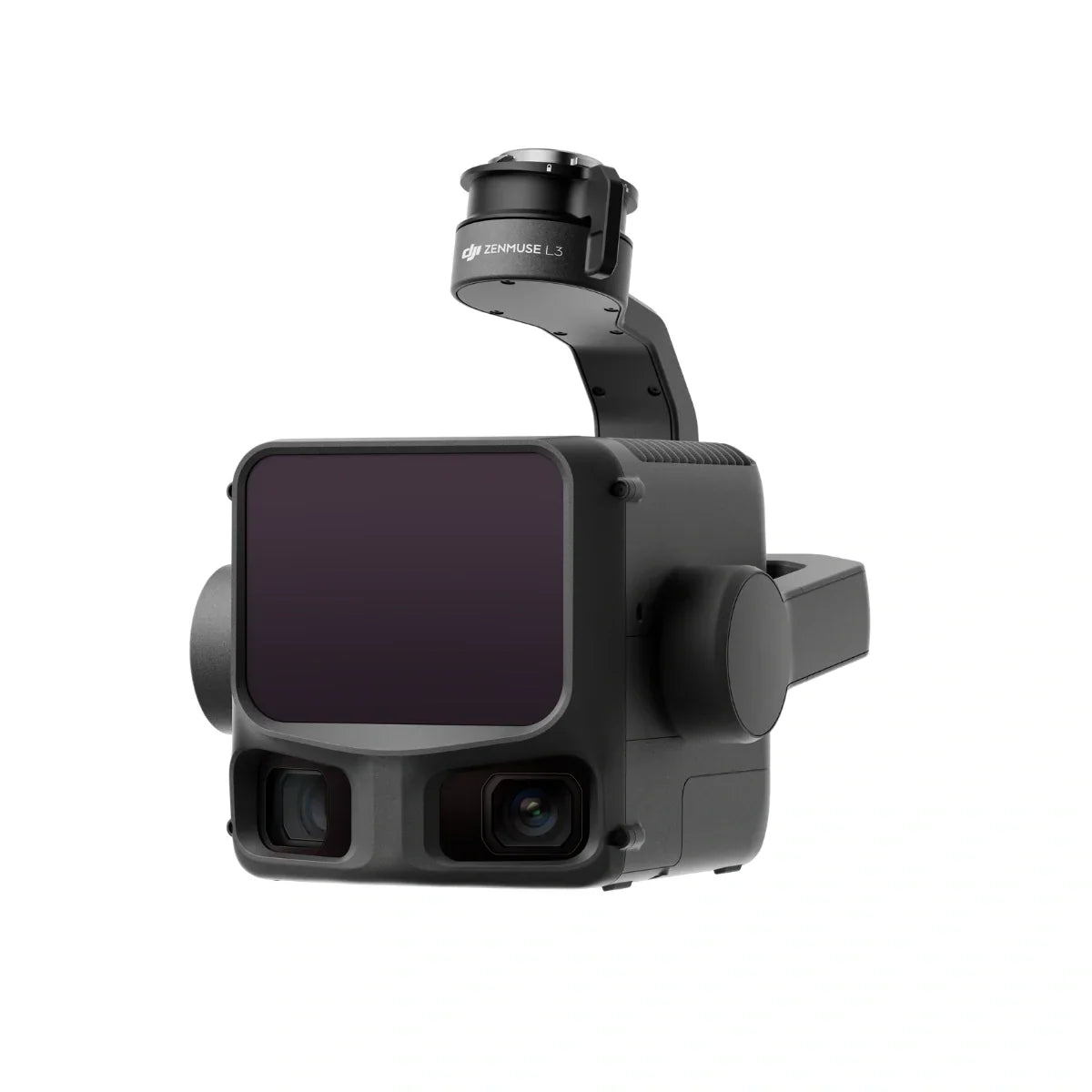

DJI Zenmuse L3 LiDAR Mapping Payload
Cameras & Payloads
Capture LiDAR and high-resolution RGB data with a mapping payload built for Matrice 400. Zenmuse L3 combines a long-range laser scanner, dual 100 MP cameras and a position-and-orientation system.
$17,400.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Dual 100 MP
- RGB mapping cameras
- 1535 nm
- LiDAR wavelength
- 4 / 8 / 16
- Returns depending on pulse rate
Overview
Choose the scanning mode and pulse rate for the terrain, vegetation or structures being surveyed. DJI Pilot 2 handles capture planning and DJI Terra processes the collected data into point clouds and mapping outputs.
Official resources
What’s included
Included items and compatible accessories.
What’s included?

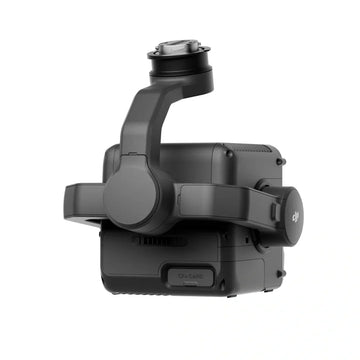

- Zenmuse L3 LiDAR gimbal camera
- Zenmuse L3 single gimbal connector
- Two 1 TB CFexpress Type B memory cards and a CFexpress Type B card reader
- Storage case and Matrice 400 carrying-case insert
- Four gimbal dampers, screws and tools, lens cap and cleaning cloth
- One year of DJI Care Enterprise Plus coverage, subject to applicable activation, eligibility and regional service terms

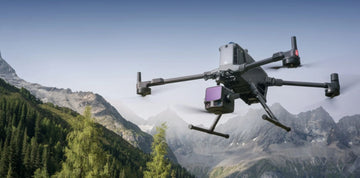

Aircraft is sold separately. Application photos show L3 on a separately sold Matrice 400.
Compatibility and setup
DJI Matrice 400 only. Use the included Zenmuse L3 single gimbal connector connected to the aircraft underside E1 port for the specified mapping performance. Processing requires compatible DJI Terra software.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.EN.00000703.01 |
|---|---|
| Payload weight without connector | 3.53 lb (1.60 kg); L3 single gimbal connector adds 5.11 oz (145 g) |
| Dimensions in stabilized state | 7.56 × 6.38 × 7.95 in (192 × 162 × 202 mm) |
| Power | 64 W typical; 100 W maximum |
| Laser safety classification | Class 1, IEC 60825-1:2014 |
| Camera sensors | Dual 4/3 CMOS, up to 100 MP each |
| Ingress protection | IP54; protection can diminish with wear |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
