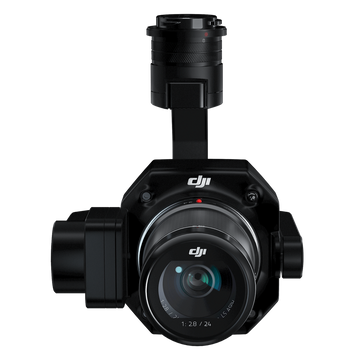

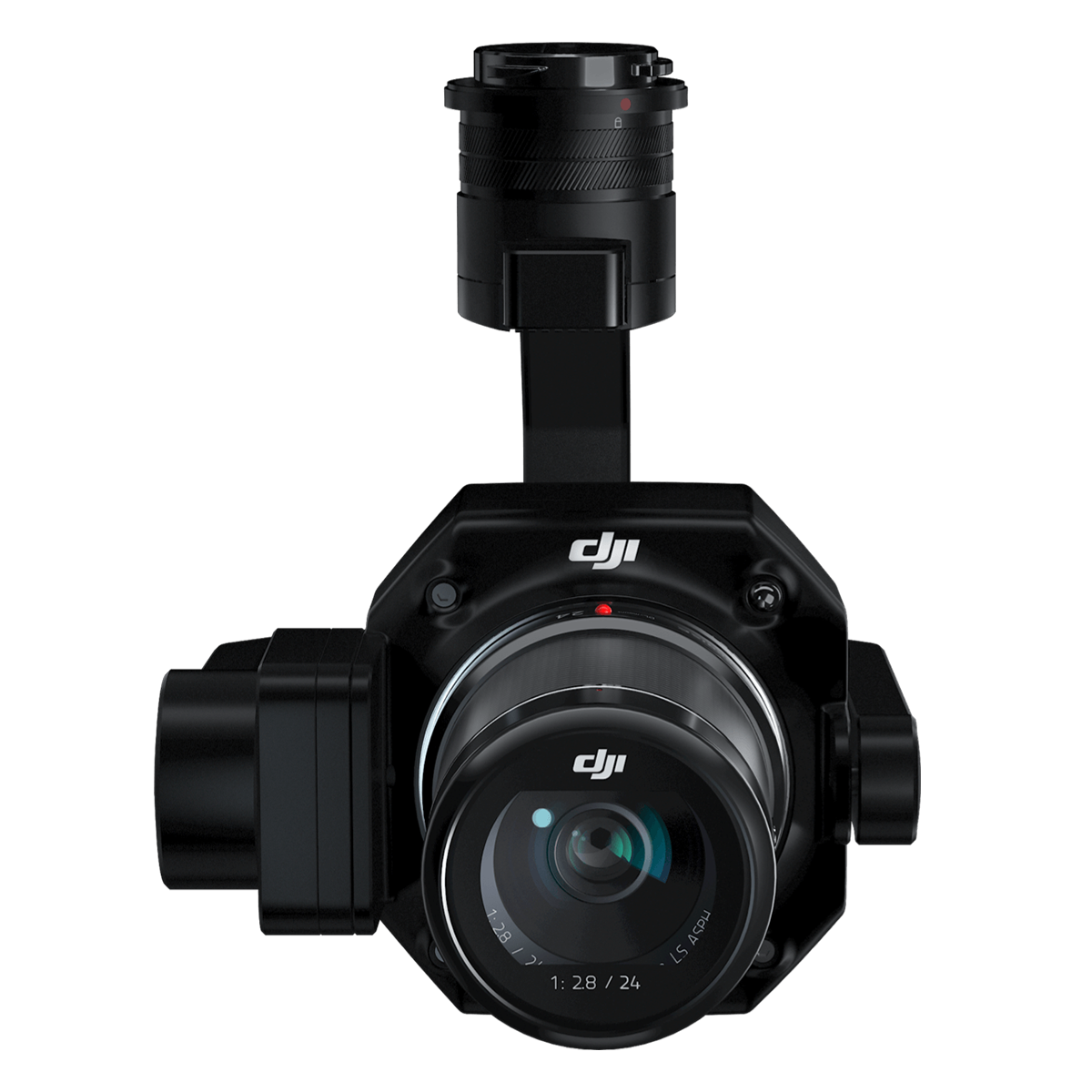

DJI Zenmuse P1 Mapping Camera
Cameras & Payloads
Capture full-frame aerial imagery for photogrammetry with the Zenmuse P1. Its 45 MP camera and stabilized gimbal support nadir and oblique mapping missions on compatible Matrice aircraft.
$7,630.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 45 MP
- Full-frame sensor
- Mechanical shutter
- Mapping capture
- 3-axis
- Stabilized gimbal
Overview
Mechanical-shutter capture and synchronized positioning data support reconstruction workflows. Compatible fixed-focus DL lenses let a survey team select the field of view for its planned collection.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Zenmuse P1 gimbal camera × 1
- DJI DL 35mm lens × 1
- SanDisk Extreme 128 GB microSD card × 1
- Storage case, camera and lens caps, and lens-cleaning cloth
Aircraft is sold separately.
Compatibility and setup
Matrice 300 RTK, Matrice 350 RTK and Matrice 400. DJI limits mounting locations by aircraft. On Matrice 400, another payload on the dual gimbal can reduce P1 mapping accuracy; use the manufacturer-recommended mounting and mission settings.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | CP.ZM.00000136.01 |
|---|---|
| Manufacturer-listed weight | Approximately 1.76 lb (800 g) |
| Dimensions | 7.80 × 6.54 × 5.08 in (198 × 166 × 129 mm) |
| Sensor | 1.41 × 0.94 in (35.9 × 24 mm) full-frame CMOS; 45 MP |
| Rated power | 20 W |
| Compatible lenses | DJI DL 24mm, 35mm and 50mm F2.8 LS ASPH |
| Ingress rating | IP4X; no water-protection rating asserted |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
