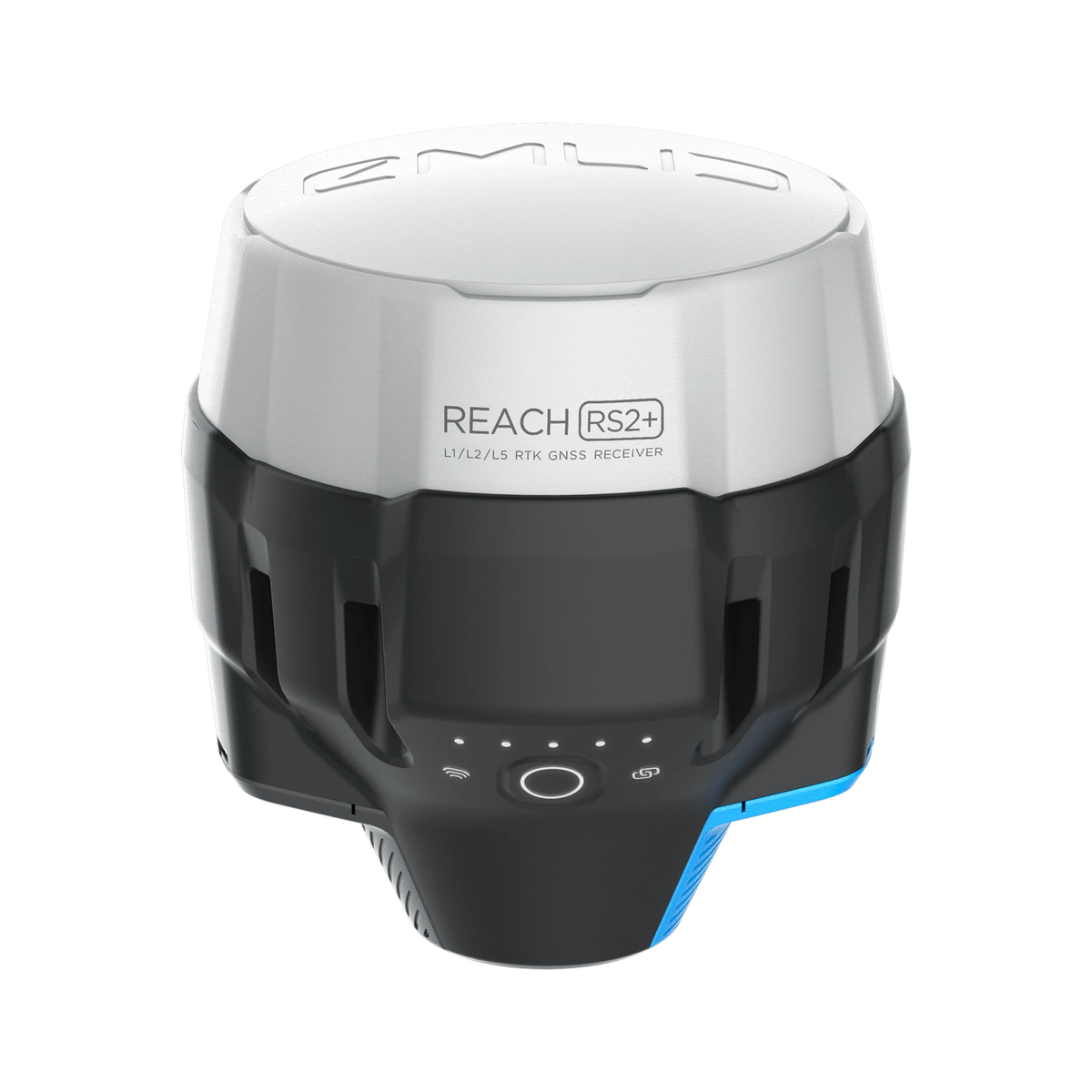

Emlid Reach RS2+ RTK GNSS Receiver
RTK & Surveying
Collect ground control, stake out points and run base or rover workflows with Reach RS2+. The multi-band GNSS receiver supports local LoRa corrections and network correction options.
$2,699.00
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Key features
- Use Emlid Flow to configure the receiver and manage supported field measurements.
- USB-C charging and an internal LiFePO4 battery support field operation.
Official resources
What’s included
Included items and compatible accessories.
- Reach RS2+ receiver
- LoRa antenna
- USB Type-C cable
- Carrying case with strap
Compatibility and setup
RTK needs a compatible local base or network correction source and suitable satellite reception. Use a compatible phone or tablet for Emlid Flow, and choose a survey pole or tripod for the measurement setup. Match radio frequencies and correction formats; network and cellular services may require subscriptions.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | RCH204 |
|---|---|
| Receiver weight | 2.09 lb (950 g) |
| Receiver dimensions | 4.96 × 4.96 × 5.59 in (126 × 126 × 142 mm) |
| Internal battery | 40.96 Wh LiFePO4, 6,400 mAh at 6.4 V |
| Rated operating time | Up to 16 hours as an LTE RTK rover or 22 hours logging |
| Mount | 5/8-inch thread |
