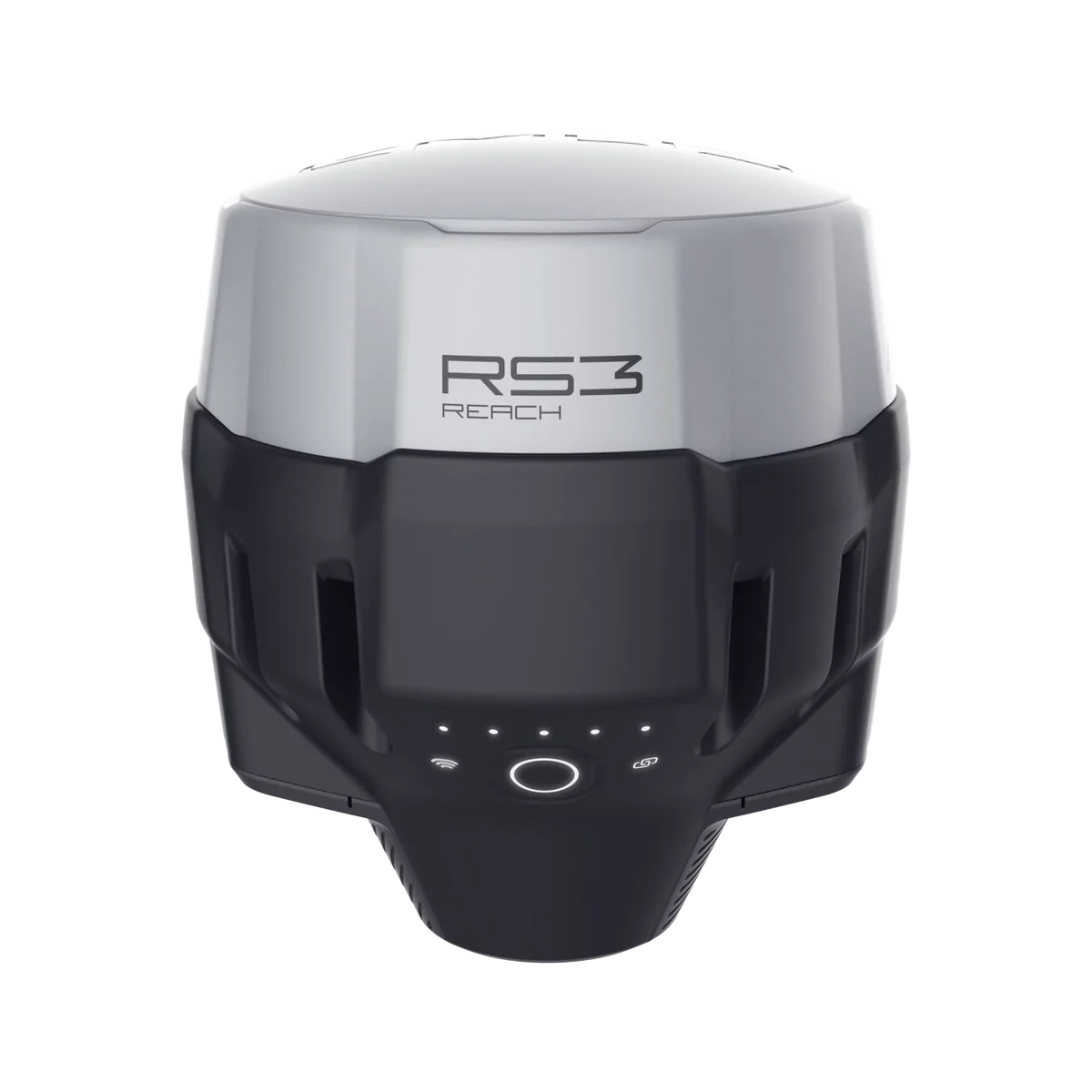

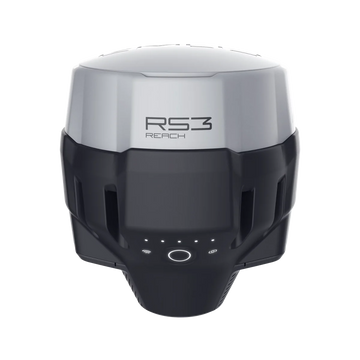

Emlid Reach RS3 RTK GNSS Receiver
RTK GNSS receiver
Collect ground control, stake out points and run a local RTK base with one receiver. Reach RS3 combines tilt compensation with radio and network corrections for surveying, construction and drone-mapping workflows. Free standard shipping to the contiguous 48 United States and Washington, DC. Other items in a mixed order may have separate shipping charges. See our shipping policy.
$2,999.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Base + rover
- Flexible correction workflows
- Tilt compensation
- IMU-assisted measurement
- 18 hr
- Rated operating time
- IP67
- Receiver protection rating
Manufacturer-rated performance. Accuracy, battery life and radio performance depend on setup and site conditions.
Overview
Use RS3 as a rover to measure site features or as a base to supply corrections to compatible equipment. Built-in LTE and Wi-Fi give you network options, while LoRa provides a local base-to-rover link. RINEX logging supports post-processing when your workflow calls for it.
Measure beside obstacles
IMU tilt compensation lets you reach points beside walls and other obstructions without keeping the pole perfectly upright.
Choose your correction source
Connect to NTRIP or an appropriate radio base. The UHF receiver can accept compatible TRIMTALK 450S corrections.
Support the aerial survey
Measure ground-control and check points. For compatible DJI RTK workflows, Emlid documents NTRIP integration through the aircraft controller.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Reach RS3 receiver × 1
- Carrying case with strap × 1
- LoRa radio antenna × 1
- USB Type-C cable × 1
Choose a survey pole or tripod for your setup, and provide a compatible phone or tablet and a 5 V / 3 A USB power source. The UHF antenna is sold separately. Cellular and correction-network service may require separate plans.
Compatibility and setup
Use Emlid Flow on a compatible iOS or Android device. A rover needs a correction source, such as a local base or supported NTRIP service. DJI integration uses a configured NTRIP connection through a compatible RTK aircraft/controller; this is not direct DJI radio pairing. Match radio frequencies, correction formats and firmware when pairing receivers.
The basic Emlid Flow app is available without a paid software plan. Correction-network access and advanced software features may require separate service subscriptions.
Specifications
The details that matter when choosing your equipment.
| Model / supplier SKU | Reach RS3 | RCH205 |
|---|---|
| Role | Base or rover |
| GNSS | Multi-band, multi-constellation |
| Receiver weight | 2.09 lb (950 g) |
| Receiver dimensions | 4.96 × 4.96 × 5.59 in (126 × 126 × 142 mm) |
| Corrections and communications | LoRa transmit/receive; UHF receive-only; NTRIP |
| RTK accuracy | Horizontal: 0.28 in + 1 ppm (7 mm + 1 ppm); vertical: 0.55 in + 1 ppm (14 mm + 1 ppm) |
| Tilt accuracy | RTK + 0.079 in + 0.012 in per degree (RTK + 2 mm + 0.3 mm per degree); up to 60° tilt |
| Rated operating time | 18 hours as an RTK rover with tilt compensation |
| Internal battery | 37.44 Wh lithium-ion, 5,200 mAh at 7.2 V |
| Charging | USB-C, 5 V / 3 A |
| Raw data logging | RINEX, 16 GB internal storage |
| Ingress protection | IP67 |
| Operating temperature | -4 to 149°F (-20 to 65°C) |
RTK precision requires suitable satellite reception and valid corrections. Obstructions, multipath, correction quality and baseline distance affect results. Tilt adds the stated error term to RTK accuracy. Rated endurance varies with radio use, temperature and operating configuration. Follow Emlid’s care instructions for the receiver’s ingress-protection rating.
