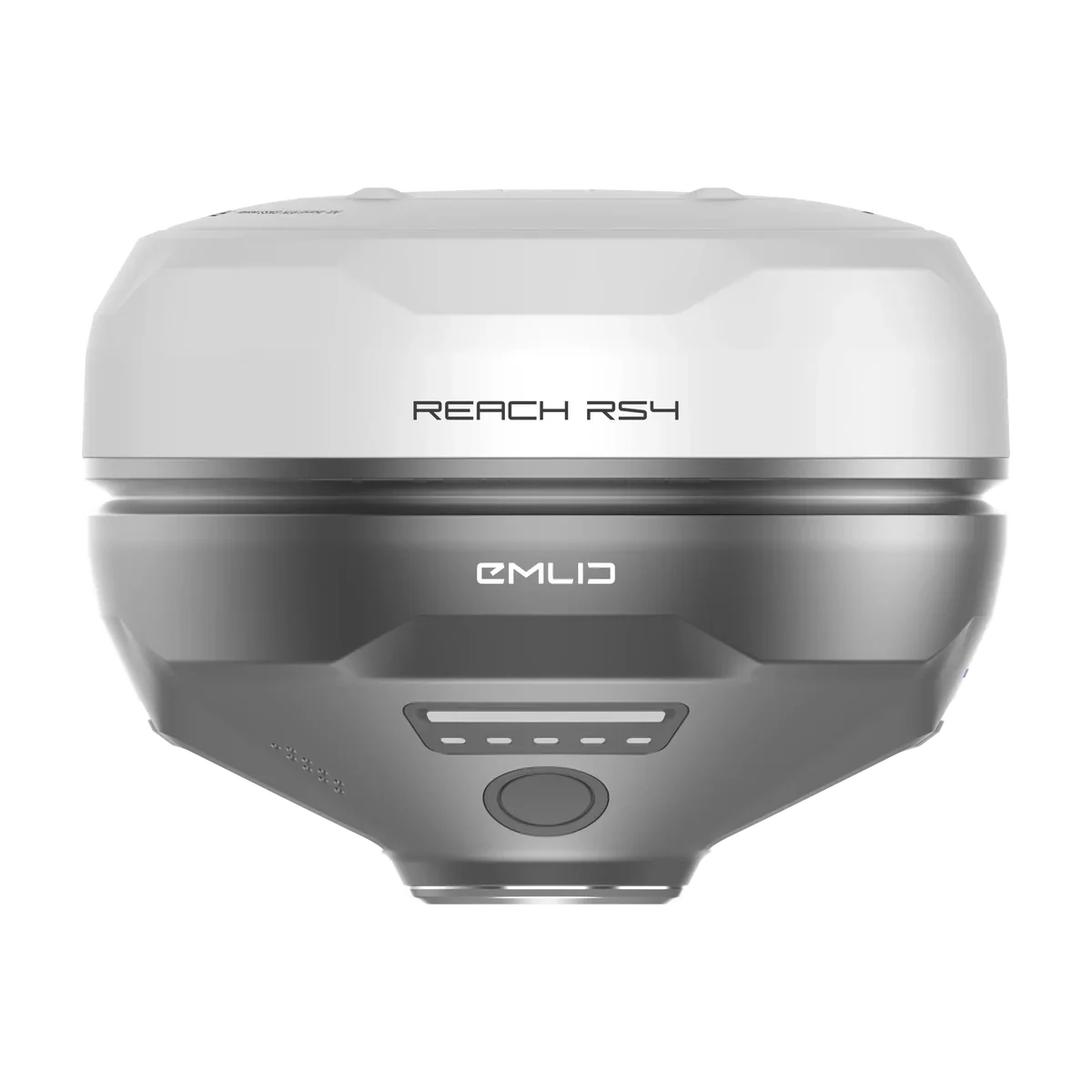

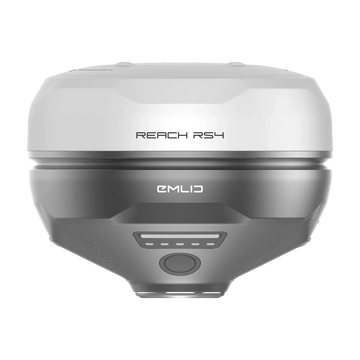

Emlid Reach RS4 RTK GNSS Receiver
RTK GNSS receiver
Build a flexible field setup for surveying, construction layout and drone mapping. Reach RS4 combines all-band GNSS, tilt compensation and two radio systems in a compact base or rover receiver.
$3,899.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Base + rover
- Flexible correction workflows
- Tilt compensation
- IMU-assisted measurement
- 16 hr
- Rated operating time
- IP68
- Receiver protection rating
Manufacturer-rated performance. Accuracy, battery life and radio performance depend on setup and site conditions.
Overview
Run RS4 as your field rover or as a fixed base for compatible equipment. Its 672-channel receiver tracks multiple satellite constellations and frequency bands, including L5 and L6. LTE, Wi-Fi, LoRa and UHF give crews several ways to deliver corrections as site conditions change.
Work beyond a level pole
IMU-based tilt compensation helps measure hard-to-reach points while retaining a defined accuracy model.
Connect the field crew
Both LoRa and UHF support transmitting and receiving corrections. NTRIP offers a network-based alternative.
Keep raw observations
Internal storage supports RINEX logging for compatible post-processing workflows. RS4 is the non-camera model in the RS4 family.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Reach RS4 receiver × 1
- Carrying case × 1
- USB Type-C cable × 1
- LoRa antenna, 860–930 MHz × 1
- UHF antenna, 410–470 MHz × 1
Survey pole, tripod, phone or tablet, USB power adapter and cellular data plan are sold separately.
Compatibility and setup
Configure the receiver with Emlid Flow on a compatible iOS or Android device. RTK requires a compatible local base or network correction source. Match radio settings, correction formats and supported firmware with the other receiver or aircraft controller. Use the appropriate regional radio configuration.
The basic Emlid Flow app is available without a paid software plan. Correction-network access and advanced software features may require separate service subscriptions.
Specifications
The details that matter when choosing your equipment.
| Model | Reach RS4 |
|---|---|
| Supplier SKU | RCH401 |
| Role | Base or rover |
| GNSS | All-band, 672-channel GNSS |
| Receiver weight | 2.04 lb (927 g) |
| Receiver dimensions | 5.06 × 5.06 × 3.91 in (128.6 × 128.6 × 99.3 mm) |
| Corrections and communications | LoRa and UHF transmit/receive; NTRIP |
| RTK accuracy | Horizontal: 0.28 in + 1 ppm (7 mm + 1 ppm); vertical: 0.55 in + 1 ppm (14 mm + 1 ppm) |
| Tilt accuracy | RTK + 0.079 in + 0.012 in per degree (RTK + 2 mm + 0.3 mm per degree) |
| Rated operating time | 16 hours as an RTK rover with tilt compensation |
| Internal battery | 36 Wh lithium-ion, 5,000 mAh at 7.2 V |
| Charging | USB-C Power Delivery, 5/9/12/15 V, 3 A |
| Raw data logging | RINEX, 16 GB internal storage |
| Ingress protection | IP68 |
| Operating temperature | -40 to 149°F (-40 to 65°C) |
RTK precision requires suitable satellite reception and valid corrections. Obstructions, multipath, correction quality and baseline distance affect results. Tilt adds the stated error term to RTK accuracy. Rated endurance varies with radio use, temperature and operating configuration. Follow Emlid’s care instructions for the receiver’s ingress-protection rating.
