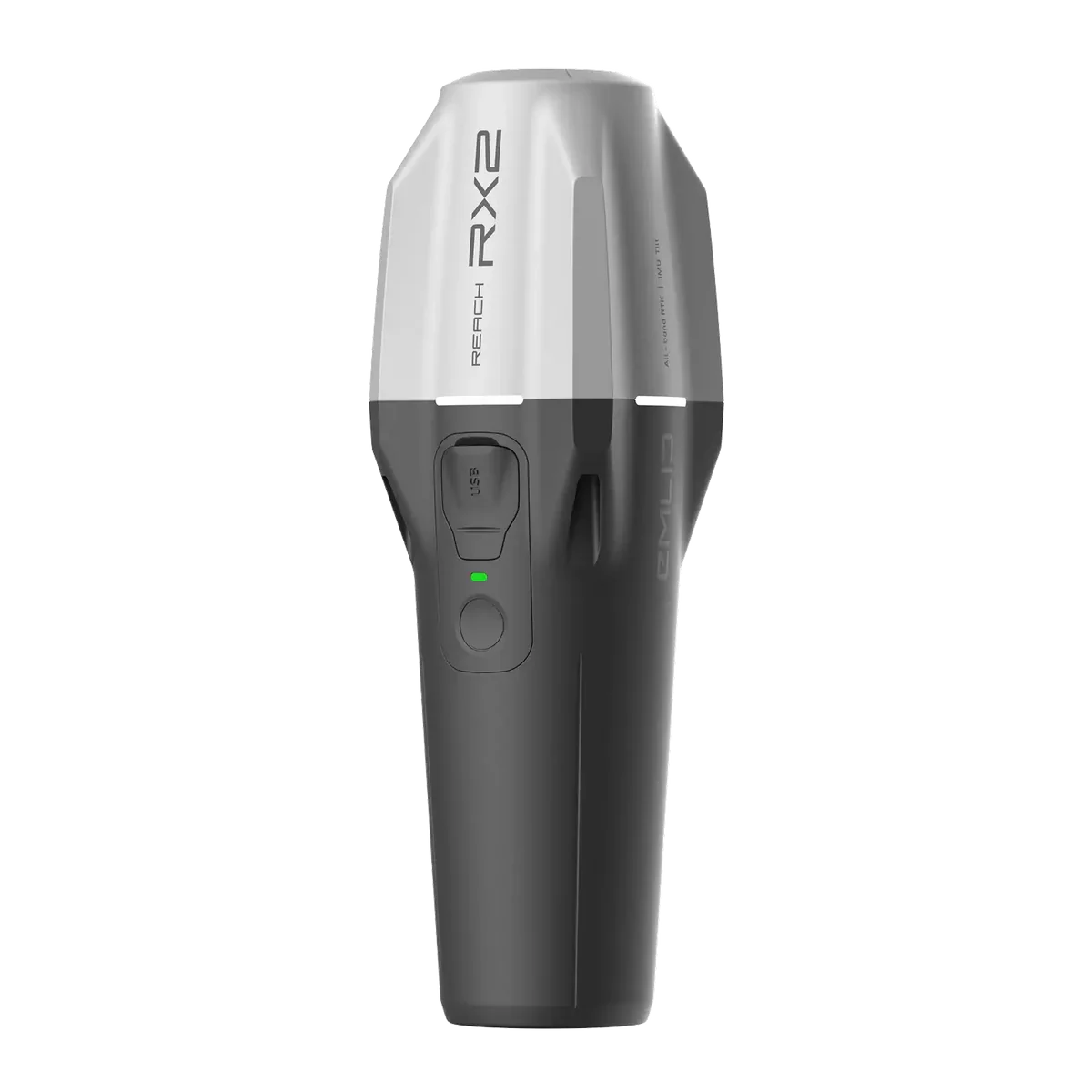

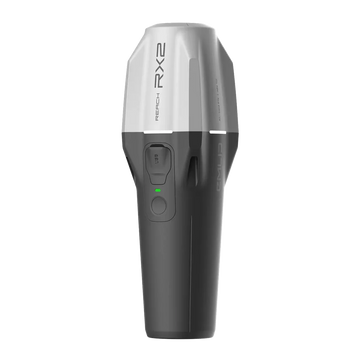

Emlid Reach RX2 RTK GNSS Rover
RTK GNSS receiver
Add precise positioning to mobile fieldwork without carrying a full-size base receiver. The 9.88 oz (280 g) Reach RX2 is an all-band RTK rover for GIS, asset mapping, utility work and ground-control collection.
$2,399.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 9.88 oz (280 g)
- Receiver weight
- Tilt compensation
- IMU-assisted measurement
- 16 hr
- Rated operating time
- IP68
- Receiver protection rating
Manufacturer-rated performance. Accuracy, battery life and radio performance depend on setup and site conditions.
Overview
Pair RX2 with a compatible phone or tablet and a network correction source. Tilt compensation helps measure beside walls and on slopes, while Bluetooth connects the receiver to Emlid Flow and supported GIS applications. Its compact form suits crews that need to move quickly between points.
Travel light
A pocket-size receiver and internal battery keep the field setup compact. A pole and mobile device complete the survey workflow.
Use network corrections
RX2 receives NTRIP corrections through your connected mobile device. Check mobile coverage and correction-service coverage for the job site.
Choose the right role
RX2 is a rover only. It does not replace an RTK base, offer LoRa/UHF radio corrections or record RINEX observations.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Reach RX2 receiver × 1
- USB Type-C cable × 1
Survey pole, phone or tablet, carrying case, scanning handle, USB power adapter and paid software licenses are sold separately.
Compatibility and setup
Use Emlid Flow on a compatible iOS or Android device with an internet connection and a supported NTRIP correction source. Emlid lists ArcGIS Field Maps, Survey123 and QField among supported GIS workflows; each application has its own requirements and licensing. RX2 supports ground measurements for a drone survey, rather than serving as an aircraft RTK base.
The basic Emlid Flow app is available without a paid software plan. Correction-network access and advanced software features may require separate service subscriptions.
Specifications
The details that matter when choosing your equipment.
| Model | Reach RX2 |
|---|---|
| Supplier SKU | RCH303 |
| Role | Network rover only |
| GNSS | All-band, 672-channel GNSS |
| Receiver weight | 0.62 lb (280 g) |
| Receiver dimensions | 6.77 × 2.01 × 2.01 in (172 × 51 × 51 mm) |
| Corrections and communications | NTRIP corrections via a compatible connected mobile device |
| RTK accuracy | Horizontal: 0.28 in + 1 ppm (7 mm + 1 ppm); vertical: 0.55 in + 1 ppm (14 mm + 1 ppm) |
| Tilt accuracy | RTK + 0.079 in + 0.012 in per degree (RTK + 2 mm + 0.3 mm per degree) |
| Rated operating time | 16 hours maximum |
| Internal battery | 25.2 Wh lithium-ion, 7,000 mAh at 3.6 V |
| Charging | USB-C, 5 V / 2 A |
| Raw data logging | Not supported |
| Ingress protection | IP68 |
| Operating temperature | -4 to 149°F (-20 to 65°C) |
RTK precision requires suitable satellite reception and valid corrections. Obstructions, multipath, correction quality and baseline distance affect results. Tilt adds the stated error term to RTK accuracy. Rated endurance varies with radio use, temperature and operating configuration. Follow Emlid’s care instructions for the receiver’s ingress-protection rating.
