Freefly Astro Isolator
Mission Accessories

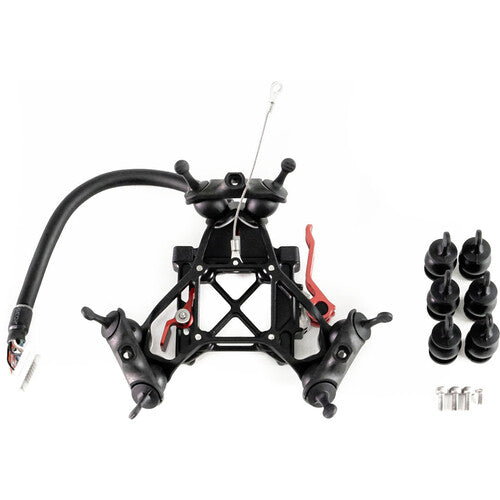

Isolate a compatible Astro payload from aircraft vibration while retaining a quick mechanical and electrical connection. The assembly combines the Smart Dovetail receiver, cable and installed 30A dampers.
$695.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Up to 3.31 lb (1.5 kg)
- Payload reference capacity
- Smart Dovetail
- Receiver and cable included
- 30A dampers
- Installed, with six spares
Overview
This Astro Isolator is optimized for payloads up to 3.31 lb (1.5 kg). That figure is payload capacity, not the isolator’s own weight.
What’s included
Included items and compatible accessories.
- Astro vibration-isolator assembly with Smart Dovetail receiver and cable × 1
- Mounting fasteners × 4, including tether attachment
- Additional 30A dampers × 6
Payload, aircraft and optional 40A / 50A dampers are sold separately.
Compatibility and setup
Power off the aircraft before attaching or removing a Smart Dovetail payload; the interface is not hot-swappable. Select dampers for the actual payload configuration. This 1.5 kg-reference Astro Isolator is distinct from the newer Astro Max Isolator and from obsolete earlier isolator products.
Documentation
Specifications
The details that matter when choosing your equipment.
| Supplier part number | 910-00748 |
|---|---|
| Recommended payload reference | Up to 3.31 lb (1.5 kg) |
| Installed damping | 30A durometer |
| Payload interface | Freefly Smart Dovetail receiver |
| Aircraft compatibility | Astro models within manufacturer payload and integration limits |
