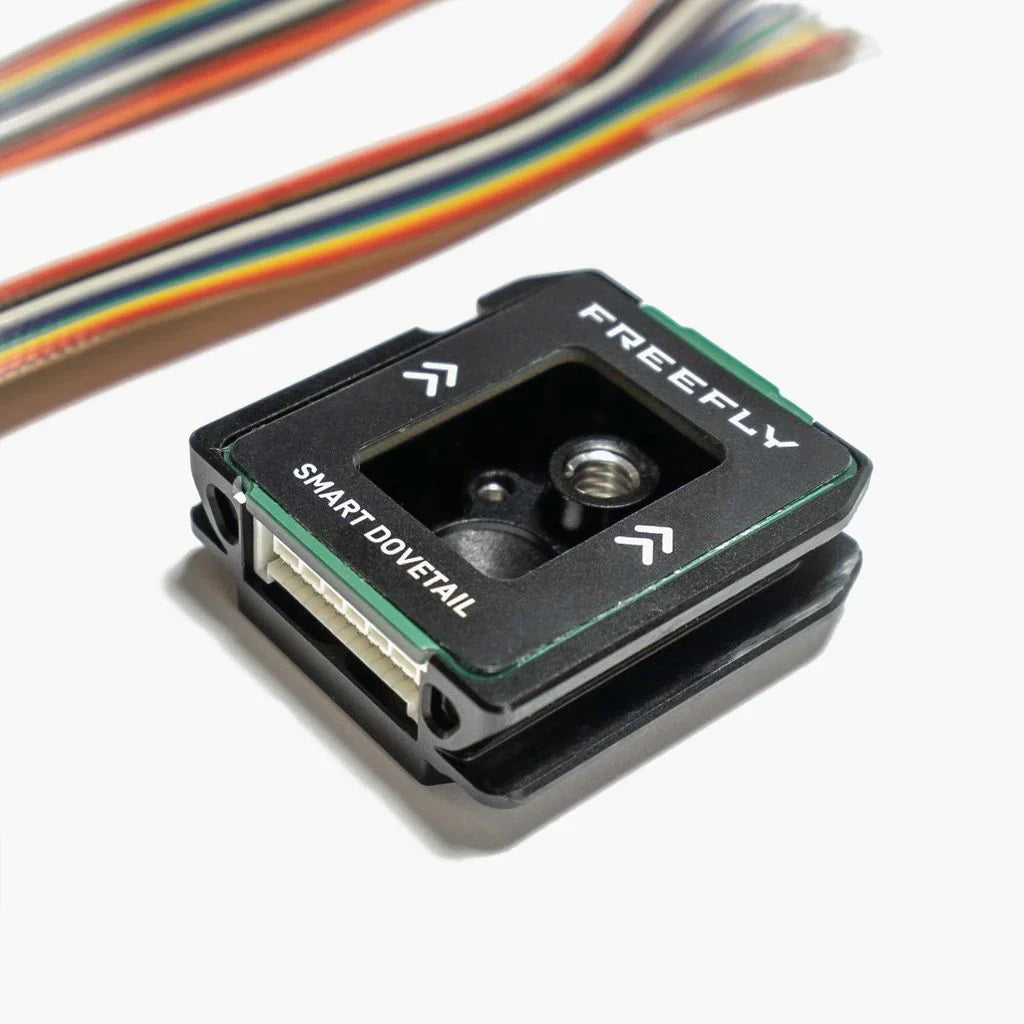

Freefly Smart Dovetail Payload Adapter
Cameras & Payloads
Build a payload-side connection for a compatible Freefly aircraft. The Smart Dovetail adapter combines a quick-release mechanical interface with the Pixhawk Payload Bus electrical connection.
$225.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Payload-side adapter
- Quick-release interface
- Pixhawk Payload Bus
- Mechanical and electrical integration
- Two ribbon cables
- Included for integration
Overview
Use this component when integrating a custom payload with the corresponding vehicle-side receiver. It is an adapter and wiring package, not a complete sensor or gimbal.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Smart Dovetail payload interface × 1
- ZPDR-26V-S connector × 1
- 13-conductor, 28 AWG ribbon cables × 2
Payload, aircraft and any required aircraft-side receiver or isolator are sold separately.
Compatibility and setup
Astro requires a Smart Dovetail Kit or compatible vibration isolator. The manufacturer identifies Astro Max and Alta X Gen2 receiver mounts as installed; this does not make the adapter compatible with legacy Alta X. Power off before installation or removal. Payload wiring and configuration must meet the aircraft integration requirements.
Specifications
The details that matter when choosing your equipment.
| Supplier part number | 910-00682 |
|---|---|
| Interface role | Payload-side Smart Dovetail |
| Electrical architecture | Pixhawk Payload Bus |
| Included connector | JST ZPDR-26V-S |
| Included wiring | Two 13-conductor, 28 AWG ribbon cables |
