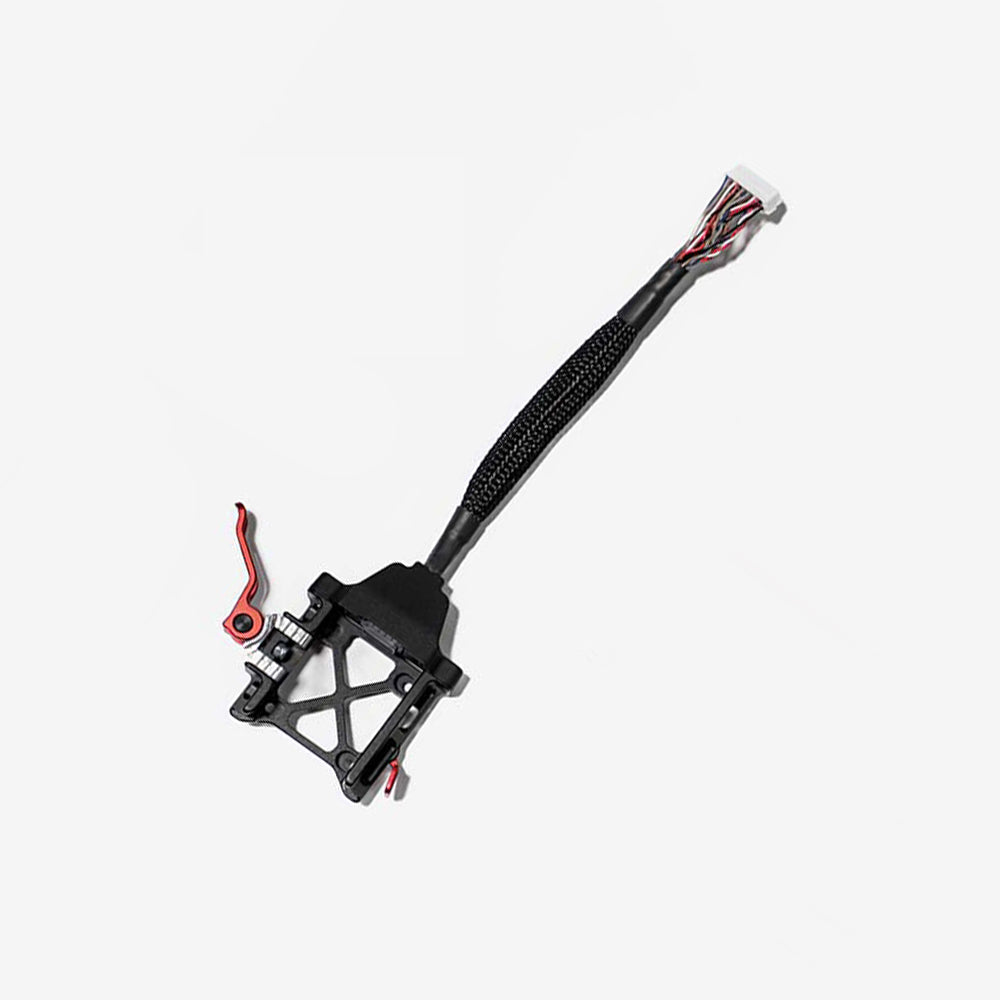

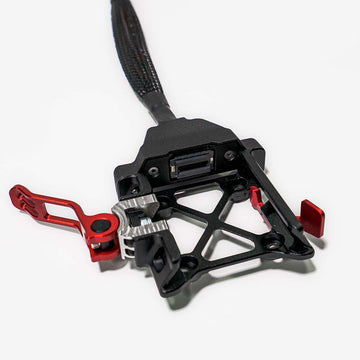

Freefly Smart Dovetail Receiver
Mission Accessories
Add the vehicle-side Smart Dovetail interface for a compatible Astro integration. The receiver provides the matching mechanical and electrical connection for supported payload-side adapters.
$345.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- Vehicle-side receiver
- Smart Dovetail interface
- Pixhawk Payload Bus
- Supported integration architecture
- Mounting hardware
- Screws and standoffs included
Overview
This receiver is an integration component for Astro Base and Astro Map configurations. The supplied mounting hardware supports installation, while payload-specific wiring and configuration remain separate.
Official resources
What’s included
Included items and compatible accessories.
What’s included?
- Smart Dovetail receiver × 1
- M3 × 8 socket-head cap screws × 4
- M3 × 8 male-female standoffs × 4
Aircraft, payload-side adapter, payload and separately required integration cables are not included.
Compatibility and setup
The exact manufacturer page lists Astro Base and Astro Map and excludes Alta X. Do not assume a different Alta X generation or arbitrary payload is supported by this receiver SKU. Power off the aircraft before attaching or removing payloads; this interface is not hot-swappable.
Specifications
The details that matter when choosing your equipment.
| Supplier part number | 910-00795 |
|---|---|
| Interface role | Vehicle-side Smart Dovetail receiver |
| Manufacturer-listed aircraft | Astro Base and Astro Map |
| Included screw specification | M3 × 8 socket-head cap screws |
| Included standoff specification | M3 × 8 male-female standoffs |
