Gremsy Pixy MR
Cameras & Payloads
Gremsy Pixy MR connects a Sony ILX-LR1 camera to DJI Matrice 300 RTK and Matrice 350 RTK aircraft for mapping and inspection.
$3,466.26
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Overview
- DJI Skyport V2.0 supports camera and gimbal control in the DJI workflow.
- The compact gimbal supports selected Sony prime lenses.
Official resources
What’s included
Included items and compatible accessories.

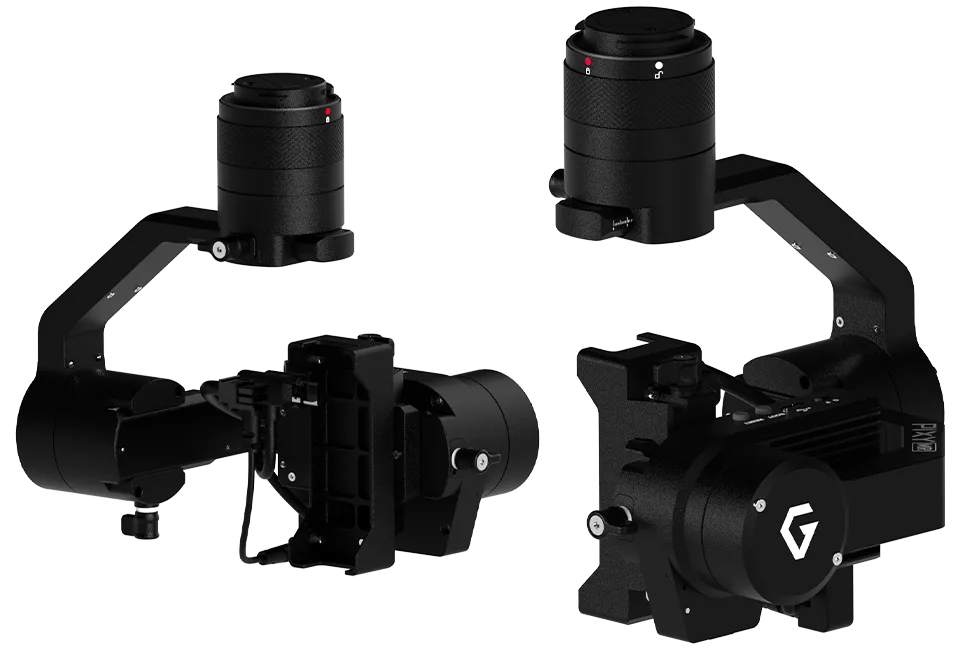

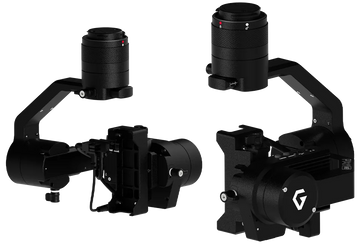

- Pixy MR gimbal
- USB and right-angle micro-HDMI cables
- Installation hardware
Compatibility and setup
Requires a Sony ILX-LR1 camera and a supported lens. DJI default damping supports SEL24F28G, SEL28F20, SEL35F28Z, SEL40F25G and SEL50F25G; Gremsy Advanced Damping is specified for the SEL55F18Z 55 mm lens. Balance the camera/lens assembly and follow the integration instructions.
Specifications
The details that matter when choosing your equipment.
| Manufacturer | Gremsy |
|---|---|
| Supplier SKU | 20G501-000 |
| Gimbal weight | 1.15 lb (520 g) |
| Dimensions, D × W × H | 6.18 × 4.25 × 6.57 in (157 × 108 × 167 mm) |
| Aircraft interface | DJI Skyport V2.0 |
| Input voltage | 13.7 V |
| Condition | New |
