Inspired Flight Navigational RTK Kit
RTK & Surveying
Add a fixed GNSS reference to your Inspired Flight mapping or inspection workflow. The NAV RTK Base Station supplies positioning corrections through the supported ground-control setup for IF800 TOMCAT and IF1200 aircraft.
$1,300.00
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.

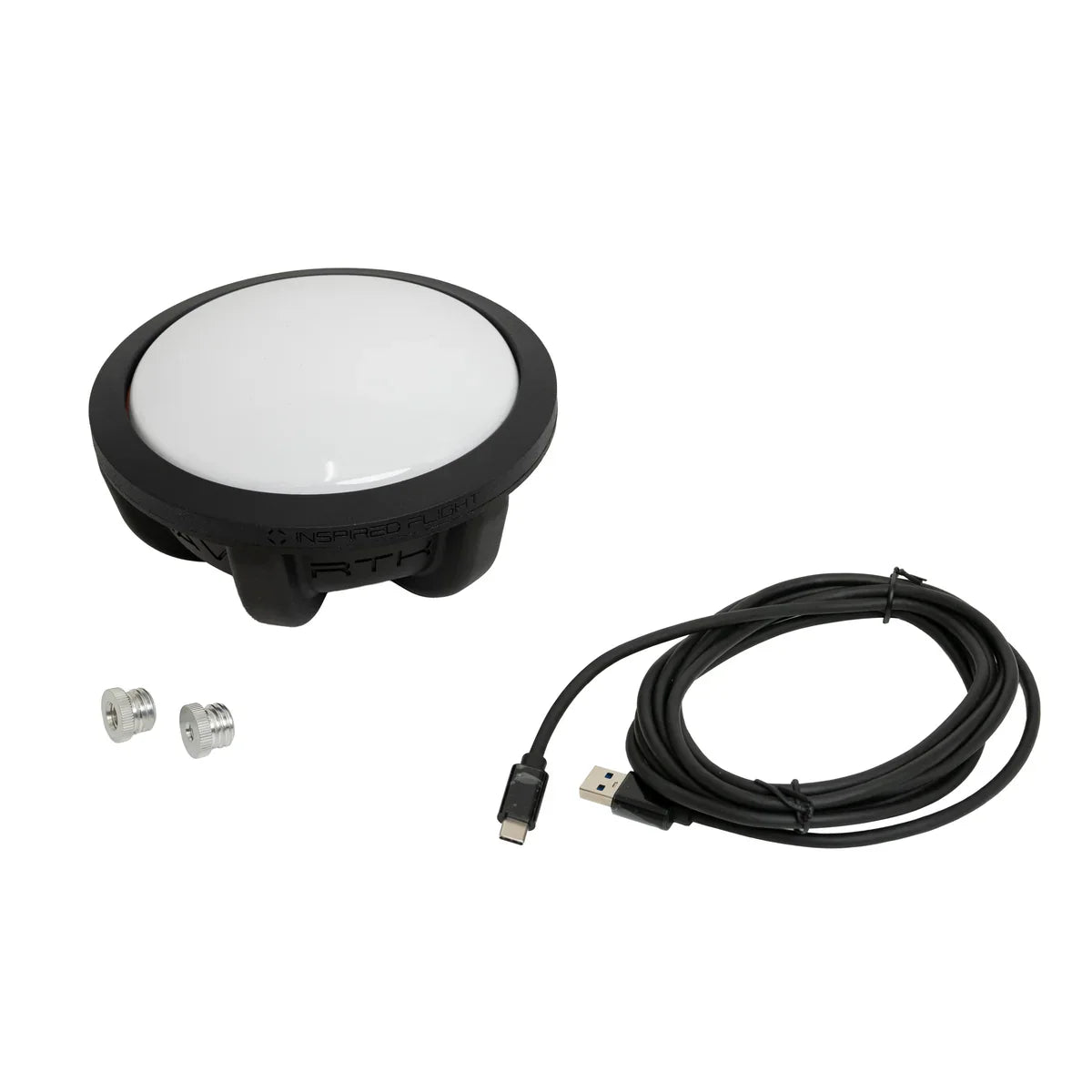

What’s included
Included items and compatible accessories.
- NAV RTK Base Station
- 10 ft USB-A to USB-C cable
- 5/8-11 to 3/8-16 adapter
- 5/8-11 to 1/4-20 adapter
Compatibility and setup
Requires a compatible IF800 or IF1200 with Herelink Blue ground controller, a laptop running Mission Planner or QGroundControl, and a stable tripod. Aircraft, controller, laptop and tripod are not included. Follow the manufacturer survey-in and correction-link procedure; absolute positioning accuracy depends on the reference coordinates, satellite reception and survey-in time.
Specifications
The details that matter when choosing your equipment.
| Supplier SKU | 104406 |
|---|---|
| Base station net weight | 1.36 lb (618 g) |
| Base station dimensions | 6.69 × 6.69 × 3.54 in (170 × 170 × 90 mm) |
| Power input | 5 V through USB-C |
| Included cable length | 10 ft (3.05 m) |
| Tripod thread | 5/8-11 UNC; 3/8-16 and 1/4-20 adapters included |
| Operating temperature | -40 to 158 °F (-40 to 70 °C) |
| Ingress rating | IP43 |
