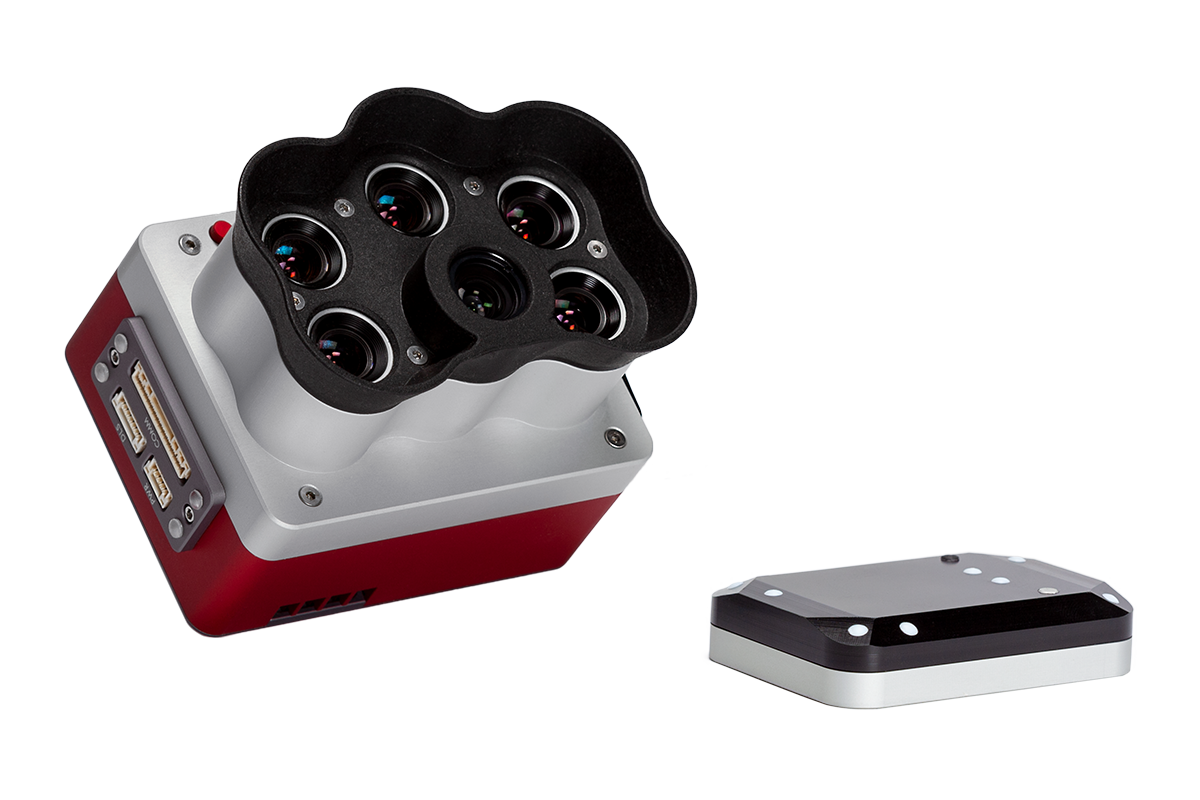

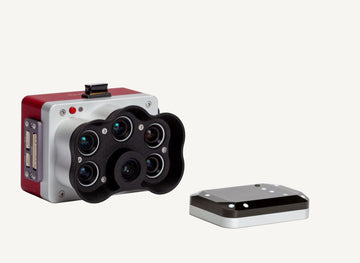

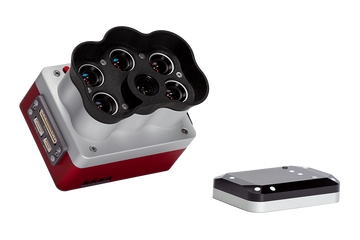

MicaSense RedEdge-P Multispectral Kit
Cameras & Payloads
Collect multispectral and panchromatic imagery for crop scouting, vegetation mapping and environmental monitoring. RedEdge-P combines five multispectral bands with a higher-resolution panchromatic channel.
$8,495.00
USDAvailable to order
Delivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
- 5 bands + panchromatic
- Synchronized capture
- Global shutter
- All imaging channels
- CFexpress
- Removable storage
Overview
The DLS 2 light sensor and calibration panel support repeatable reflectance measurements across flights. Appropriate processing produces RGB and vegetation-index outputs from the captured data.
Official resources
Manufacturer reference 1 · Manufacturer reference 2 · Manufacturer reference 3
What’s included
Included items and compatible accessories.
What’s included?
- RedEdge-P sensor × 1
- DLS 2 light sensor with embedded GPS × 1
- CRP 2 calibration panel × 1
- USB Wi-Fi dongle and lens cover
- Integration cables and mounting hardware
- CFexpress card and card reader
- Hard carrying case and quick-start guide
Aircraft and model-specific mounts shown in application photos, plus image-processing software, are sold separately.
Compatibility and setup

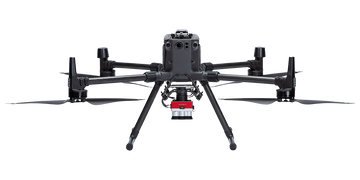

Requires an appropriate aircraft mount, power connection and DLS 2 installation. A DJI SkyPort integration is available for Matrice 300 RTK, but the generic sensor kit is not a complete aircraft mounting package. This sensor captures multispectral and visible imagery; it does not contain a thermal camera.
Specifications
The details that matter when choosing your equipment.
| Supplier part number | 805-00089 |
|---|---|
| Reference operating configuration weight | 12.80 oz (363 g), sensor, Wi-Fi, CFexpress card, DLS 2 and cables |
| Sensor dimensions | 3.50 × 2.76 × 2.64 in (8.9 × 7.0 × 6.7 cm) |
| Image resolution | 1,456 × 1,088 per multispectral band; 2,464 × 2,056 panchromatic |
| External power | 7.0–25.2 V DC |
| Power draw | 5.5 W standby; 7.0 W average; 10 W peak |
| Panchromatic ground sampling | 1.57 in/pixel at 394 ft (3.98 cm/pixel at 120 m) |
| Storage | CFexpress card |
