Sentera 6X Thermal Pro Sensor Kit for IF800
Cameras & Payloads
The Sentera 6X Thermal Pro kit for Inspired Flight IF800 combines multispectral, RGB and radiometric thermal imaging on the specified Smart Dovetail gimbal interface. The aircraft shown in the photo is not included.
View larger

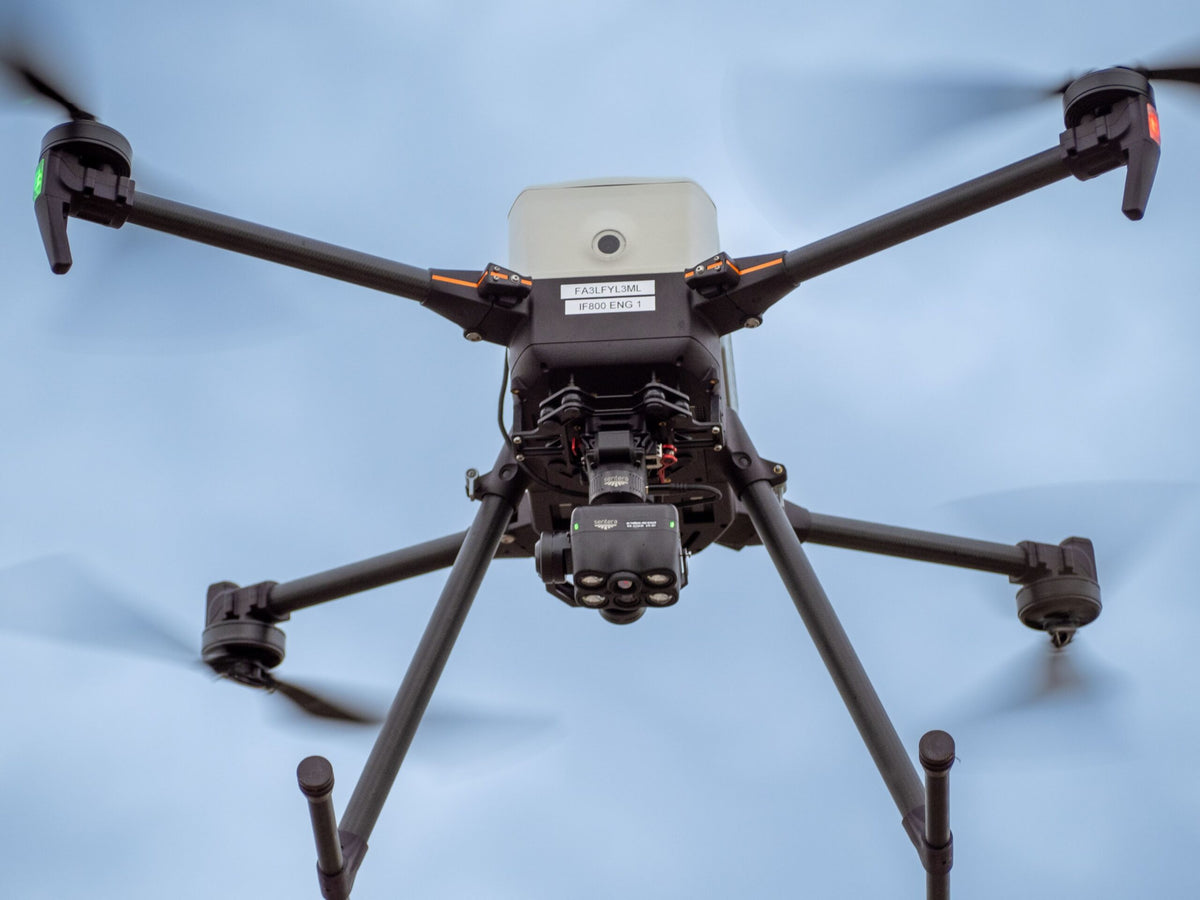

Sentera 6X Thermal Pro installed on an IF800; aircraft shown for illustration and not included
$21,350.00
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Overview
- Four multispectral imagers and a separate RGB camera capture crop and visual information.
- A FLIR Boson 640 thermal sensor provides a 640 × 512 radiometric thermal image.
Official resources
What’s included
Included items and compatible accessories.
- Sentera 6X Thermal Pro sensor
- Smart Dovetail gimbal for the IF800 configuration
- Incident light sensor (ILS)
- Reflectance panel
Compatibility and setup
Use the specified IF800 Smart Dovetail installation and the sensor’s light-sensor and calibration procedures. This kit configuration is not the DJI Skyport version.
Specifications
The details that matter when choosing your equipment.
| Manufacturer | Sentera |
|---|---|
| Supplier SKU | 21930-14 |
| Multispectral imagers | 4 × 3.2 MP |
| RGB imager | 20.1 MP |
| Thermal resolution | 640 × 512 pixels |
| Internal storage | 512 GB SSD |
| Condition | New |
| Sensor dimensions, excluding gimbal | 3.13 x 2.60 x 2.66 in (79.5 x 66 x 67.5 mm) |
| Sensor with Smart Dovetail gimbal | 1.13 lb (511 g) |
