Workswell GIS-320 Optical Gas Imaging Camera, 14.5°
Cameras & Payloads
Inspect compatible gas leaks using the Workswell GIS-320 optical gas imaging camera. This configuration specifies a 14.5° lens and a 320 x 240 cooled infrared detector. Images illustrate the GIS-320 camera; the supplied lens configuration is the one stated here.
View larger

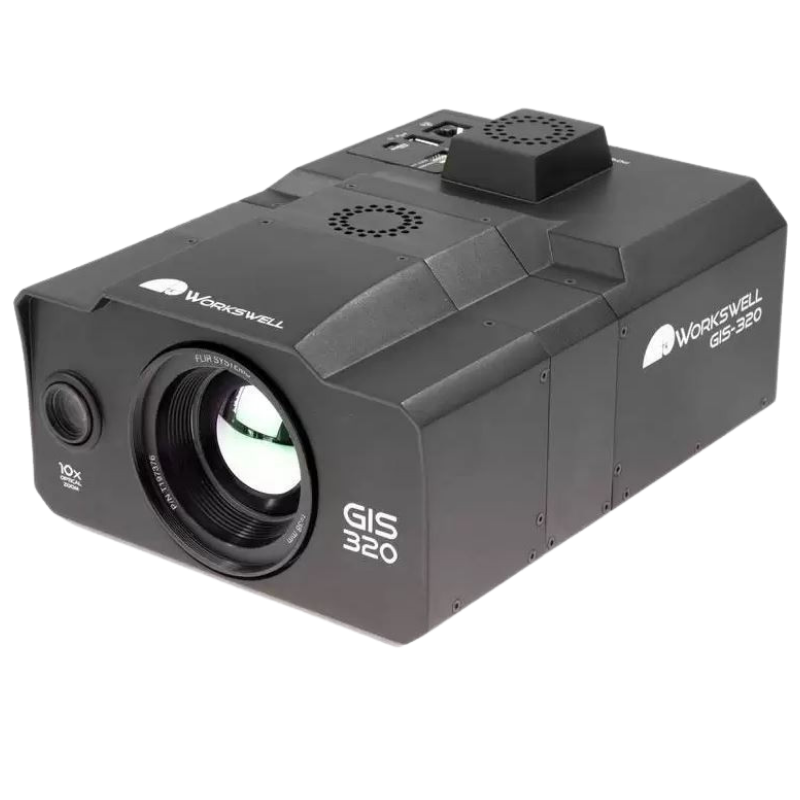

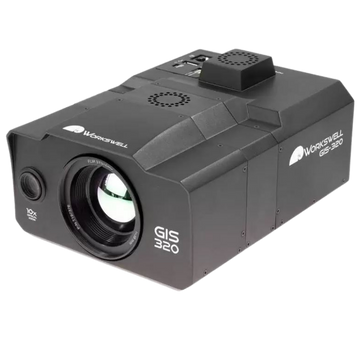

Workswell GIS-320 model front view for illustration; this offer specifies the 14.5-degree lens.
$71,500.00
USDDelivery
Standard shipping is available to the contiguous 48 states and Washington, DC. Shipping charges are shown at checkout before payment. Orders of $6,500 or more after discounts qualify for free standard shipping.
Warranty & returns
Request a return within 10 days of delivery. Customers pay change-of-mind return shipping; opened change-of-mind returns have a 20% restocking fee. GroDrones covers return shipping for incorrect items, products that arrived damaged or defective, and approved warranty returns. Contact us before shipping a return. See our return policy.
Overview
- Optical gas imaging with a cooled 320 × 240 infrared detector.
- 14.5° lens configuration for a compatible inspection payload installation.
Official resources
What’s included
Included items and compatible accessories.
- One Workswell GIS-320 camera with the specified 14.5° lens
Compatibility
Requires an appropriate payload mounting, power and control integration. An aircraft or separate gimbal is not included. This is a legacy model; confirm availability and current service options before ordering.
Specifications
The details that matter when choosing your equipment.
| Manufacturer | Workswell |
|---|---|
| Supplier SKU | 71520-0301 |
| Infrared resolution | 320 x 240 pixels |
| Specified lens field of view | 14.5° x 10.8° |
| Product dimensions | 7.91 x 5.91 x 3.98 in (201 x 150 x 101 mm) |
| Published product weight | Under 3.53 lb (1.6 kg) |
| Operating temperature | 5 to 122°F (-15 to 50°C) |
| Power input | 10 to 28 VDC |
